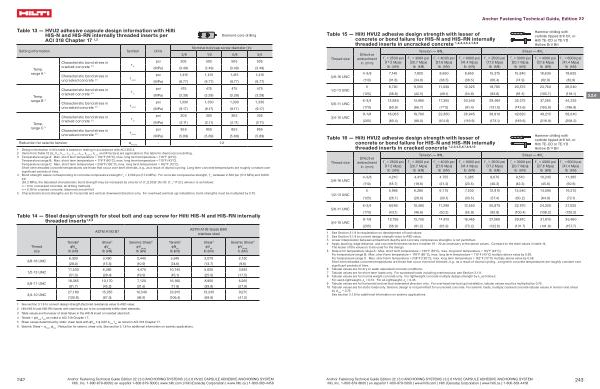

Table 15 — Hilti HVU2 adhesive design strength with lesser of concrete or bond failure for HIS-N and HIS-RN internally threaded inserts in uncracked concrete 1 , 2 , 3 , 4 , 5 , 6 , 7 , 8 , 9
Hammer drilling with carbide tipped drill bit , or Hilti TE-CD or TE-YD Hollow Drill Bit
Thread size
3 / 8-16 UNC
1 / 2-13 UNC
5 / 8-11 UNC
3 / 4-10 UNC
Effective embedment in . ( mm ) f ́c = 2500 psi ( 17.2 Mpa ) lb ( kN ) f ́c = 3000 psi ( 20.7 Mpa ) lb ( kN )
Tension — ФN n
f ́c = 4000 psi ( 27.6 Mpa ) lb ( kN ) f ́c = 6000 psi ( 41.4 Mpa ) lb ( kN ) f ́c = 2500 psi ( 17.2 Mpa ) lb ( kN ) f ́c = 3000 psi ( 20.7 Mpa ) lb ( kN )
Shear — ФV n
f ́c = 4000 psi ( 27.6 Mpa ) lb ( kN ) f ́c = 6000 psi ( 41.4 Mpa ) lb ( kN )
4-3 / 8 7,140 7,820 8,650 8,650 15,375 16,840 18,635 18,635 ( 110 ) ( 31.8 ) ( 34.8 ) ( 38.5 ) ( 38.5 ) ( 68.4 ) ( 74.9 ) ( 82.9 ) ( 82.9 )
5 8,720 9,555 11,030 12,325 18,785 20,575 23,760 26,540 ( 125 ) ( 38.8 ) ( 42.5 ) ( 49.1 ) ( 54.8 ) ( 83.6 ) ( 91.5 ) ( 105.7 ) ( 118.1 ) 6-3 / 4 13,680 14,985 17,305 20,540 29,460 32,275 37,265 44,235 ( 170 ) ( 60.9 ) ( 66.7 ) ( 77.0 ) ( 91.4 ) ( 131.0 ) ( 143.6 ) ( 165.8 ) ( 196.8 ) 8-1 / 8 18,065 19,790 22,850 26,945 38,910 42,620 49,215 58,040 ( 205 ) ( 80.4 ) ( 88.0 ) ( 101.6 ) ( 119.9 ) ( 173.1 ) ( 189.6 ) ( 218.9 ) ( 258.2 )
3.2.6
Table 16 — Hilti HVU2 adhesive design strength with lesser of concrete or bond failure for HIS-N and HIS-RN internally threaded inserts in cracked concrete 1 , 2 , 3 , 4 , 5 , 6 , 7 , 8 , 9 , 10
Hammer drilling with carbide tipped drill bit , or Hilti TE-CD or TE-YD Hollow Drill Bit
Thread size
3 / 8-16 UNC
1 / 2-13 UNC
5 / 8-11 UNC
3 / 4-10 UNC
Effective embedment in . ( mm ) f ́c = 2500 psi ( 17.2 Mpa ) lb ( kN ) f ́c = 3000 psi ( 20.7 Mpa ) lb ( kN )
Tension — ФN n
f ́c = 4000 psi ( 27.6 Mpa ) lb ( kN ) f ́c = 6000 psi ( 41.4 Mpa ) lb ( kN ) f ́c = 2500 psi ( 17.2 Mpa ) lb ( kN ) f ́c = 3000 psi ( 20.7 Mpa ) lb ( kN )
Shear — ФV n
f ́c = 4000 psi ( 27.6 Mpa ) lb ( kN ) f ́c = 6000 psi ( 41.4 Mpa ) lb ( kN )
4-3 / 8 4,210 4,415 4,755 5,285 9,070 9,510 10,245 11,385 ( 110 ) ( 18.7 ) ( 19.6 ) ( 21.2 ) ( 23.5 ) ( 40.3 ) ( 42.3 ) ( 45.6 ) ( 50.6 )
5 5,995 6,285 6,775 7,530 12,915 13,540 14,595 16,215 ( 125 ) ( 26.7 ) ( 28.0 ) ( 30.1 ) ( 33.5 ) ( 57.4 ) ( 60.2 ) ( 64.9 ) ( 72.1 ) 6-3 / 4 9,690 10,480 11,290 12,550 20,870 22,570 24,320 27,025 ( 170 ) ( 43.1 ) ( 46.6 ) ( 50.2 ) ( 55.8 ) ( 92.8 ) ( 100.4 ) ( 108.2 ) ( 120.2 ) 8-1 / 8 12,795 13,750 14,815 16,465 27,560 29,610 31,910 35,460 ( 205 ) ( 56.9 ) ( 61.2 ) ( 65.9 ) ( 73.2 ) ( 122.6 ) ( 131.7 ) ( 141.9 ) ( 157.7 )
1 See Section 3.1.8 for explanation on development of load values . 2 See Section 3.1.8 to convert design strength value to ASD value . 3 Linear interpolation between embedment depths and concrete compressive strengths is not permitted . 4 Apply spacing , edge distance , and concrete thickness factors in tables 19 – 20 as necessary to the above values . Compare to the steel values in table 14 .
The lesser of the values is to be used for the design .
5 Data is for temperature range A : Max . short term temperature = 130 ° F ( 55 ° C ), max . long term temperature = 110 ° F ( 43 ° C ). For temperature range B : Max . short term temperature = 176 ° F ( 80 ° C ), max . long term temperature = 110 ° F ( 43 ° C ) multiply above value by 0.93 . For temperature range C : Max . short term temperature = 248 ° F ( 120 ° C ), max . long term temperature = 162 ° F ( 72 ° C ) multiply above value by 0.58 . Short term elevated concrete temperatures are those that occur over brief intervals , e . g ., as a result of diurnal cycling . Long term concrete temperatures are roughly constant over significant periods of time . 6 Tabular values are for dry or water saturated concrete conditions . 7 Tabular values are for short term loads only . For sustained loads including overhead use , see Section 3.1.8 . 8 Tabular values are for normal weight concrete only . For lightweight concrete multiply design strength by λ a as follows :
For sand-lightweight , λ a = 0.51 . For all-lightweight , λ a
= 0.45 . 9 Tabular values are for horizontal and vertical downward direction only . For overhead ( vertical up ) installation , tabular values must be multiplied by 0.70 . 10 Tabular values are for static loads only . Seismic design is not permitted for uncracked concrete . For seismic loads , multiply cracked concrete tabular values in tension and shear by α seis
= 0.75 . See section 3.1.8 for additional information on seismic applications .
