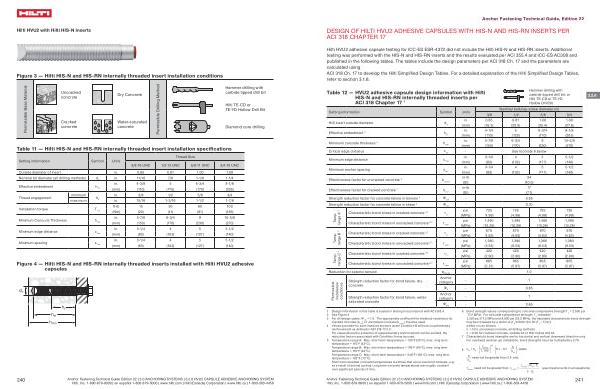

Hilti HVU2 with Hilti HIS-N Inserts
Figure 3 — Hilti HIS-N and HIS-RN internally threaded insert installation conditions
Permissible Base Material |
Uncracked concrete
Cracked concrete
|
Dry Concrete
Water-saturated concrete
|
Permissible Drilling Method |
Hammer drilling with carbide tipped drill bit
Hilti TE-CD or TE-YD Hollow Drill Bit
Diamond core drilling
|
Table 11 — Hilti HIS-N and HIS-RN internally threaded insert installation specifications
Setting information Symbol Units
Thread Size 3 / 8-16 UNC 1 / 2-13 UNC 5 / 8-11 UNC 3 / 4-10 UNC
Outside diameter of insert in . 0.65 0.81 1.00 1.09 Nominal bit diameter ( all drilling methods ) d o in . 11 / 16 7 / 8 1-1 / 8 1-1 / 4
Effective embedment h ef in . 4-3 / 8 5 6-3 / 4 8-1 / 8 ( mm ) ( 110 ) ( 125 ) ( 170 ) ( 205 )
Thread engagement minimum in . 3 / 8 1 / 2 5 / 8 3 / 4 h maximum s in . 15 / 16 1-3 / 16 1-1 / 2 1-7 / 8
Installation torque T inst ft-lb 15 30 60 100 ( Nm ) ( 20 ) ( 41 ) ( 81 ) ( 136 )
Minimum Concrete Thickness h min in . 5-7 / 8 6-3 / 4 9 10-5 / 8 ( mm ) ( 150 ) ( 170 ) ( 230 ) ( 270 )
Minimum edge distance c min in . 3-1 / 4 4 5 5-1 / 2 ( mm ) ( 83 ) ( 102 ) ( 127 ) ( 140 )
Minimum spacing s min in . 3-1 / 4 4 5 5-1 / 2 ( mm ) ( 83 ) ( 102 ) ( 127 ) ( 140 )
Figure 4 — Hilti HIS-N and HIS-RN internally threaded inserts installed with Hilti HVU2 adhesive capsules
240 Anchor Fastening Technical Guide Edition 22 | 3.0 ANCHORING SYSTEMS | 3.2.6 HVU2 CAPSULE ADHESIVE ANCHORING SYSTEM Hilti , Inc . 1-800-879-8000 | en español 1-800-879-5000 | www . hilti . com | Hilti ( Canada ) Corporation | www . hilti . ca | 1-800-363-4458
