Product Technical Guides : CA-EN Anchor Fastening - Volume 2 Edition 21

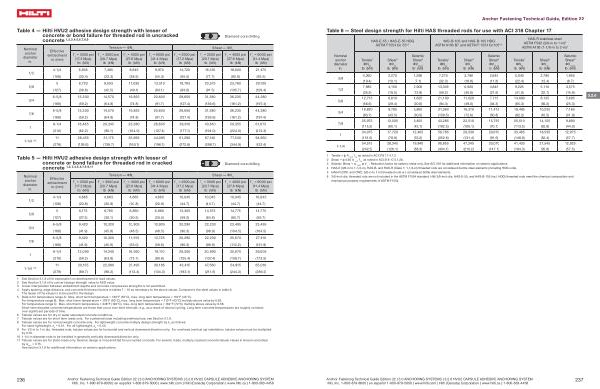

Table 4 — Hilti HVU2 adhesive design strength with lesser of concrete or bond failure for threaded rod in uncracked concrete ¹ ^, ² ^, ³ ^, ⁴ ^, ⁵ ^, ⁶ ^, ⁷ ^, ⁸ ^, ⁹

Diamond core drilling

Nominal anchor diameter in .

1 / 2

5 / 8

3 / 4

7 / 8

Effective embedment in . ( mm ) _{f ́c} = 2500 psi ( 17.2 Mpa ) lb ( kN ) _{f ́c} = 3000 psi ( 20.7 Mpa ) lb ( kN )

Tension — ФN _n

_{f ́c} = 4000 psi ( 27.6 Mpa ) lb ( kN ) _{f ́c} = 6000 psi ( 41.4 Mpa ) lb ( kN ) _{f ́c} = 2500 psi ( 17.2 Mpa ) lb ( kN ) _{f ́c} = 3000 psi ( 20.7 Mpa ) lb ( kN )

Shear — ФV _n

_{f ́c} = 4000 psi ( 27.6 Mpa ) lb ( kN ) _{f ́c} = 6000 psi ( 41.4 Mpa ) lb ( kN )

4-1 / 4 6,835 7,485 8,645 9,970 14,720 16,125 18,620 21,475 ( 108 ) ( 30.4 ) ( 33.3 ) ( 38.5 ) ( 44.3 ) ( 65.5 ) ( 71.7 ) ( 82.8 ) ( 95.5 )

5 8,720 9,555 11,030 13,510 18,785 20,575 23,760 29,100 ( 127 ) ( 38.8 ) ( 42.5 ) ( 49.1 ) ( 60.1 ) ( 83.6 ) ( 91.5 ) ( 105.7 ) ( 129.4 ) 6-5 / 8 13,300 14,570 16,825 20,605 28,650 31,380 36,235 44,380 ( 168 ) ( 59.2 ) ( 64.8 ) ( 74.8 ) ( 91.7 ) ( 127.4 ) ( 139.6 ) ( 161.2 ) ( 197.4 ) 6-5 / 8 13,300 14,570 16,825 20,605 28,650 31,380 36,235 44,380 ( 168 ) ( 59.2 ) ( 64.8 ) ( 74.8 ) ( 91.7 ) ( 127.4 ) ( 139.6 ) ( 161.2 ) ( 197.4 ) 8-1 / 4 18,485 20,245 23,380 28,635 39,810 43,610 50,355 61,675 ( 210 ) ( 82.2 ) ( 90.1 ) ( 104.0 ) ( 127.4 ) ( 177.1 ) ( 194.0 ) ( 224.0 ) ( 274.3 )

⁽ ¹⁰ ⁾	11	28,455	31,175	35,995	44,085	61,290	67,140	77,530	94,950
1-1 / 4	( 279 )	( 126.6 )	( 138.7 )	( 160.1 )	( 196.1 )	( 272.6 )	( 298.7 )	( 344.9 )	( 422.4 )

Table 5 — Hilti HVU2 adhesive design strength with lesser of concrete or bond failure for threaded rod in cracked concrete ¹ ^, ² ^, ³ ^, ⁴ ^, ⁵ ^, ⁶ ^, ⁷ ^, ⁸ ^, ⁹ ^, ¹¹

Diamond core drilling

Nominal anchor diameter in .

1 / 2

5 / 8

3 / 4

7 / 8

Effective embedment in . ( mm ) _{f ́c} = 2500 psi ( 17.2 Mpa ) lb ( kN ) _{f ́c} = 3000 psi ( 20.7 Mpa ) lb ( kN )

Tension — ФN _n

_{f ́c} = 4000 psi ( 27.6 Mpa ) lb ( kN ) _{f ́c} = 6000 psi ( 41.4 Mpa ) lb ( kN ) _{f ́c} = 2500 psi ( 17.2 Mpa ) lb ( kN ) _{f ́c} = 3000 psi ( 20.7 Mpa ) lb ( kN )

Shear — ФV _n

_{f ́c} = 4000 psi ( 27.6 Mpa ) lb ( kN ) _{f ́c} = 6000 psi ( 41.4 Mpa ) lb ( kN )

4-1 / 4 4,665 4,665 4,665 4,665 10,045 10,045 10,045 10,045 ( 108 ) ( 20.8 ) ( 20.8 ) ( 20.8 ) ( 20.8 ) ( 44.7 ) ( 44.7 ) ( 44.7 ) ( 44.7 )

5 6,175 6,765 6,860 6,860 13,305 14,575 14,775 14,775 ( 127 ) ( 27.5 ) ( 30.1 ) ( 30.5 ) ( 30.5 ) ( 59.2 ) ( 64.8 ) ( 65.7 ) ( 65.7 ) 6-5 / 8 9,420 10,320 10,905 10,905 20,290 22,230 23,495 23,495 ( 168 ) ( 41.9 ) ( 45.9 ) ( 48.5 ) ( 48.5 ) ( 90.3 ) ( 98.9 ) ( 104.5 ) ( 104.5 ) 6-5 / 8 9,420 10,320 11,915 12,725 20,290 22,230 25,670 27,410 ( 168 ) ( 41.9 ) ( 45.9 ) ( 53.0 ) ( 56.6 ) ( 90.3 ) ( 98.9 ) ( 114.2 ) ( 121.9 ) 8-1 / 4 13,090 14,340 16,560 18,110 28,200 30,890 35,670 39,005 ( 210 ) ( 58.2 ) ( 63.8 ) ( 73.7 ) ( 80.6 ) ( 125.4 ) ( 137.4 ) ( 158.7 ) ( 173.5 )

⁽ ¹⁰ ⁾	11	20,155	22,080	25,495	30,185	43,415	47,560	54,915	65,010
1-1 / 4	( 279 )	( 89.7 )	( 98.2 )	( 113.4 )	( 134.3 )	( 193.1 )	( 211.6 )	( 244.3 )	( 289.2 )

1 See Section 3.1.8 of for explanation on development of load values . 2 See Section 3.1.8 of to convert design strength value to ASD value . 3 Linear interpolation between embedment depths and concrete compressive strengths is not permitted . 4 Apply spacing , edge distance , and concrete thickness factors in tables 7 – 10 as necessary to the above values . Compare to the steel values in table 6 .

The lesser of the values is to be used for the design .

5 Data is for temperature range A : Max . short term temperature = 130 ° F ( 55 ° C ), max . long term temperature = 110 ° F ( 43 ° C ). For temperature range B : Max . short term temperature = 176 ° F ( 80 ° C ), max . long term temperature = 110 ° F ( 43 ° C ) multiply above value by 0.93 . For temperature range C : Max . short term temperature = 248 ° F ( 120 ° C ), max . long term temperature = 162 ° F ( 72 ° C ) multiply above value by 0.58 . Short term elevated concrete temperatures are those that occur over brief intervals , e . g ., as a result of diurnal cycling . Long term concrete temperatures are roughly constant over significant periods of time . 6 Tabular values are for dry or water saturated concrete conditions . 7 Tabular values are for short term loads only . For sustained loads including overhead use , see Section 3.1.8 . 8 Tabular values are for normal weight concrete only . For lightweight concrete multiply design strength by λ _a as follows :

For sand-lightweight , λ _a = 0.51 . For all-lightweight , λ _a

= 0.45 . 9 For 1 / 2-in to 1-in dia . threaded rods , tabular values are for horizontal and vertical downward direction only . For overhead ( vertical up ) installation , tabular values must be multiplied by 0.70 . 10 1-1 / 4-in diameter rods to be installed in generally vertically downward direction only . 11 Tabular values are for static loads only . Seismic design is not permitted for uncracked concrete . For seismic loads , multiply cracked concrete tabular values in tension and shear by α _seis

= 0.75 . See section 3.1.8 for additional information on seismic applications .

Product Technical Guides : CA-EN Anchor Fastening - Volume 2 Edition 21 | Page 240
