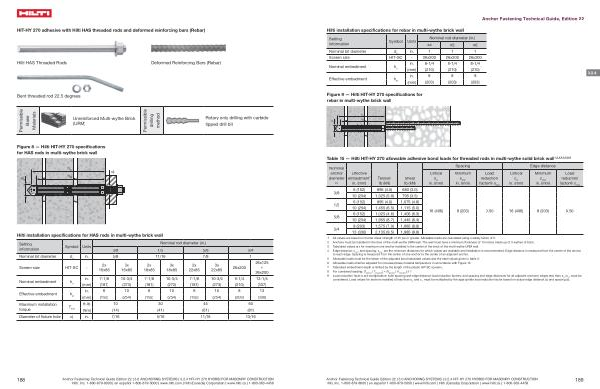

HIT-HY 270 adhesive with Hilti HAS threaded rods and deformed reinforcing bars ( Rebar )
Hilti HAS Threaded Rods Deformed Reinforcing Bars ( Rebar )
Bent threaded rod 22.5 degrees
|
Permissible Base
Materials
|
Unreinforced Multi-wythe Brick ( URM ) |
Permissible drilling method |
Rotary only drilling with carbide tipped drill bit |
Figure 8 — Hilti HIT-HY 270 specifications for HAS rods in multi-wythe brick wall d f
Hilti installation specifications for HAS rods in multi-wythe brick wall
Setting information
Symbol Units
Nominal rod diameter ( in .) 3 / 8 1 / 2 5 / 8 3 / 4
Nominal bit diameter d o in . 5 / 8 11 / 16 7 / 8 1
Screen size HIT-SC -
2x 16x85
3x 16x85
2x 18x85
3x 18x85
2x 22x85
3x 22x85
26x200
26x125 + 26x200
Nominal embedment h o in . 7-1 / 8 10-3 / 4 7-1 / 8 10-3 / 4 7-1 / 8 10-3 / 4 8-1 / 4 13-1 / 4 ( mm ) ( 181 ) ( 273 ) ( 181 ) ( 273 ) ( 181 ) ( 273 ) ( 210 ) ( 337 )
Effective embedment h ef in . 6 10 6 10 6 10 8 13 ( mm ) ( 152 ) ( 254 ) ( 152 ) ( 254 ) ( 152 ) ( 254 ) ( 203 ) ( 330 )
Maximum installation torque
T inst ft-lb 10 30 45 60 ( Nm ) ( 14 ) ( 41 ) ( 61 ) ( 81 )
Diameter of fixture hole d f in . 7 / 16 9 / 16 11 / 16 13 / 16
188 Anchor Fastening Technical Guide Edition 22 | 3.0 ANCHORING SYSTEMS | 3.2.4 HIT-HY 270 HYBRID FOR MASONRY CONSTRUCTION Hilti , Inc . 1-800-879-8000 | en español 1-800-879-5000 | www . hilti . com | Hilti ( Canada ) Corporation | www . hilti . ca | 1-800-363-4458
