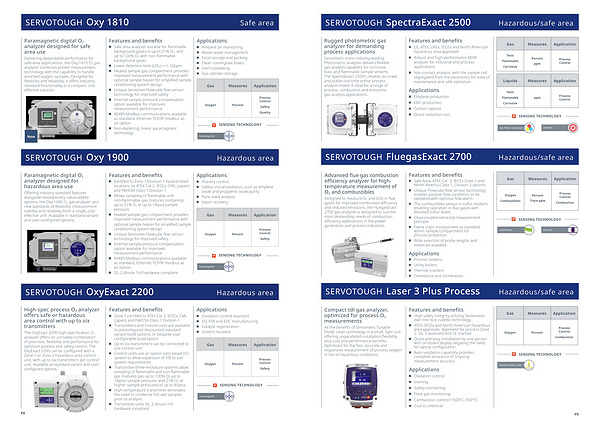

SERVOTOUGH Oxy 1810
Safe area
Paramagnetic digital O 2 analyzer designed for safe area use
Delivering dependable performance for safe-area applications, the Oxy 1810 O2 gas analyzer combines proven measurement technology with the capability to handle enriched oxygen samples. Designed for flexibility and reliability, it offers industrystandard functionality in a compact, costeffective solution.
New
Features and benefits
Safe area analyser suitable for flammable background gases in up to 21 % O2, and up to 100 % O2 with non-flammable background gases Lower detection limit( LDL) <+/- 50ppm Heated sample gas compartment provides improved measurement performance with optional sample heater for simplified sample conditioning system design Unique Servomex Flowcube flow sensor technology for improved safety Internal sample pressure compensation option available for improved measurement performance RS485 Modbus communications available as standard, Ethernet TCP / IP modbus as an option Non-depleting, linear, paramagnetic technology
Applications
Ambient air monitoring Waste water management Food storage and packing Clean room / glove boxes Inert blanketing Gas cylinder storage
Gas Measures Application
Oxygen
Paramagnetic
Percent
SENSING TECHNOLOGY
Process Control
Safety Quality
SERVOTOUGH Oxy 1900
Hazardous area
Paramagnetic digital O 2 analyzer designed for hazardous area use
Offering industry-standard features alongside revolutionary, value-added options, the Oxy 1900 O2 gas analyzer sets new standards of flexibility, measurement stability and reliability from a single, costeffective unit. Available in standard variant and user-configured options.
Features and benefits
Certified to Zone 1 / Division 1 hazard-rated locations, to ATEX Cat 2, IECEx, CML( Japan) and FM / CSA Class 1 Division 1 Allows sampling of flammable and non-flammable gas mixtures containing up to 21 % O2 at up to 18psia sample pressure Heated sample gas compartment provides improved measurement performance with optional sample heater for simplified sample conditioning system design Unique Servomex Flowcube flow sensor technology for improved safety Internal sample pressure compensation option available for improved measurement performance RS485 Modbus communications available as standard, Ethernet TCP / IP modbus as an option SIL 2( Route 1H) hardware compliant
Applications
Process control Safety-critical oxidation, such as ethylene oxide and propylene oxide purity Flare stack analysis Vapor recovery
Gas Measures Application
Oxygen
Paramagnetic
Percent
SENSING TECHNOLOGY
Process Control
Safety
SERVOTOUGH OxyExact 2200
Hazardous area
P8
High-spec process O 2 analyzer offers safe or hazardous area control with up to six transmitters
The OxyExact 2200 high-specification O2 analyzer offers an unrivaled combination of precision, flexibility and performance for optimum process and safety control. The OxyExact 2200 can be configured with a Zone 1 or Zone 2 hazardous area control unit, with up to six transmitters per control unit. Available as standard variant and userconfigured options.
Features and benefits
Zone 1 certified to ATEX Cat 2, IECEx, CML( Japan) and FM / CSA Class 1 Division 1
Transmitters and Control units are available in preconfigured discounted standard variant build options, or bespoke user configurable build option
Up to six transmitters can be connected to one control unit
Control units use an option card based I / O system to allow expansion of I / O to suit system requirements
Transmitter three-enclosure systems allow sampling of flammable and non-flammable gas mixtures gas up to 100 % O2 up to 18psia sample pressure, and 21 % O2 at higher sample pressures of up to 45psia
High-temperature transmitter eliminates the need to condense hot wet samples prior to analysis
Transmitter units SIL 2( Route 1H) hardware compliant
Applications
Oxidation control reactions EO, PTA and EDC manufacturing Catalyst regeneration Solvent recovery
Gas Measures Application
Oxygen
Paramagnetic
Percent
SENSING TECHNOLOGY
Process Control
Safety
