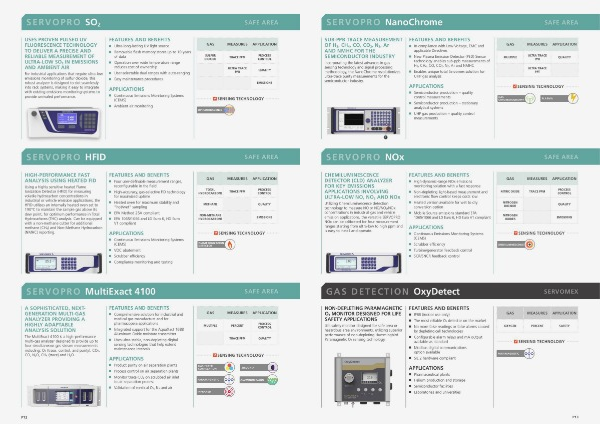

S E R V O P R O SO 2
USES PROVEN PULSED UV
FLUORESCENCE TECHNOLOGY
TO DELIVER A PRECISE AND
RELIABLE MEASUREMENT OF
ULTRA-LOW SO 2 IN EMISSIONS
AND AMBIENT AIR
For industrial applications that require ultra-low
emissions monitoring of sulfur dioxide, this
robust analyzer is designed to slot seamlessly
into rack systems, making it easy to integrate
with existing emissions monitoring systems to
provide unrivaled performance.
SAFE AREA
FEATURES AND BENEFITS
Ultra-long-lasting UV light source
Removable flash memory stores up to 10 years
of data
Operation over wide temperature range
reduces cost of ownership
GAS
MEASURES
SULFUR
DIOXIDE
TRACE PPM
ULTRA TRACE
PPB
User-selectable dual ranges with auto-ranging
Easy maintenance procedures
APPLICATION
PROCESS
CONTROL
QUALITY
EMISSIONS
S E R V O P R O NanoChrome
SUB-PPB TRACE MEASUREMENT
OF H 2 , CH 4 , CO, CO 2 , N 2 , Ar
AND NMHC FOR THE
SEMICONDUCTOR INDUSTRY
Incorporating the latest advances in gas
sensing technology and signal processing
methodology, the NanoChrome revolutionizes
ultra-trace purity measurements for the
semiconductor industry.
SENSING TECHNOLOGY
Using a highly sensitive heated Flame
Ionization Detector (HFID) for measuring
volatile hydrocarbon concentrations in
industrial or vehicle emission applications, the
HFID utilizes an internally heated oven set to
190°C to maintain the sample gas above its
dew point, for optimum performance in Total
Hydrocarbons (THC) analysis. Can be equipped
with a non-methane cutter for additional
methane (CH 4 ) and Non-Methane Hydrocarbon
(NMHC) reporting.
SAFE AREA
High-accuracy, gas-selective FID technology
for maximized uptime
Heated oven for maximum stability and
"hot/wet" sampling
EPA Method 25A compliant
EPA 1065/1066 and LD Euro 6, HD Euro
V1 compliant
GAS
TRACE PPM
APPLICATION
PROCESS
CONTROL
METHANE QUALITY
NON-METHANE
HYDROCARBONS EMISSIONS
APPLICATIONS
Continuous Emissions Monitoring Systems
(CEMS)
MEASURES
TOTAL
HYDROCARBONS
GAS MEASURES APPLICATION
MULTIPLE ULTRA TRACE
PPB QUALITY
ULTRA TRACE
PPT
Enables unique total Servomex solution for
UHP gas analysis
SENSING TECHNOLOGY
Semiconductor production – stationary
analytical systems
UHP gas production – quality control
measurements
S E R V O P R O HFID
Four user-definable measurement ranges,
reconfigurable in the field
New Plasma Emission Detector (PED) Sensor
technology enables sub-ppb measurements of
H 2 , CH 4 , CO, CO 2 , N 2 , Ar and NMHC
UV FLUORESCENCE
FEATURES AND BENEFITS
In compliance with Low Voltage, EMC and
applicable Directives
Semiconductor production – quality
control measurements
Ambient air monitoring
HIGH-PERFORMANCE FAST
ANALYSIS USING HEATED FID
APPLICATIONS
APPLICATIONS
Continuous Emissions Monitoring Systems
(CEMS)
FEATURES AND BENEFITS
SAFE AREA
SENSING TECHNOLOGY
S E R V O P R O NOx
CHEMILUMINESCENCE
DETECTOR (CLD) ANALYZER
FOR KEY EMISSIONS
APPLICATIONS INVOLVING
ULTRA-LOW NO, NO 2 AND NOx
Utilizing Chemiluminescence detection
technology to measure NO or NO/NO 2 /NOx
concentrations in industrial gas and vehicle
emission applications, the versatile SERVOPRO
NOx can be calibrated for four measurement
ranges starting from ultra-low to high ppm and
is easy to install and operate.
SAFE AREA
FEATURES AND BENEFITS
High-dynamic-range NOx emissions
monitoring solution with a fast response
Non-depleting light-based measurement and
electronic flow control keeps costs low
GAS MEASURES APPLICATION
NITRIC OXIDE TRACE PPM PROCESS
CONTROL
Heated version available for wet to dry
conversion option NITROGEN
DIOXIDE QUALITY
Mobile Source emissions standard EPA
1065/1066 and LD Euro 6, HD Euro V1 compliant NITROGEN
OXIDES EMISSIONS
APPLICATIONS
SENSING TECHNOLOGY
Continuous Emissions Monitoring Systems
(CEMS)
FLAME IONIZATION
DETECTOR
Scrubber efficiency
VOC abatement Turbine/generator feedback control
Scrubber efficiency SCR/SNCR feedback control
CHEMILUMINESCENCE
Compliance monitoring and testing
S E R V O P R O MultiExact 4100
A SOPHISTICATED, NEXT-
GENERATION MULTI-GAS
ANALYZER PROVIDING A
HIGHLY ADAPTABLE
ANALYSIS SOLUTION
The MultiExact 4100 is a high-performance
multi-gas analyzer designed to provide up to
four simultaneous gas stream measurements
including: O 2 (trace, control, and purity), CO 2 ,
CO, N 2 O, CH 4 (trace) and H 2 O.
FEATURES AND BENEFITS
Comprehensive solution for industrial and
medical gas manufacture and for
pharmacopeia applications
Integrated support for the AquaXact 1688
Aluminum Oxide moisture transmitter
Uses ultra-stable, non-depleting digital
sensing technologies that help extend
maintenance intervals
APPLICATIONS
SAFE AREA
GAS MEASURES APPLICATION
MULTIPLE PERCENT PROCESS
CONTROL
TRACE PPM
QUALITY
SENSING TECHNOLOGY
Product purity on air separation plants
Validation of medical O 2 , N 2 and air
NON-DEPLETING PARAMAGNETIC
O 2 MONITOR DESIGNED FOR LIFE
SAFETY APPLICATIONS
Life safety monitor designed for safe area or
hazardous area environments, utilizing superior
performance of non-depleting Hummingbird
Paramagnetic O 2 sensing technology.
FEATURES AND BENEFITS
IP66 (indoor use only)
SERVOMEX
GAS MEASURES APPLICATION
OXYGEN PERCENT SAFETY
The most reliable O 2 detector on the market
No more false readings or false alarms caused
by depleting cell technologies
Configurable alarm relays and mA output
available as standard
SENSING TECHNOLOGY
Modbus digital communications
option available
SIL 2 hardware compliant
APPLICATIONS
Process control on air separation plants
Monitor trace CO 2 on scrubbed air inlet
to air separation process
G A S D E T E C T I O N OxyDetect
Pharmaceutical plants
ALUMINUM OXIDE
Helium production and storage
Semiconductor facilities
Laboratories and universities
P12
P13
