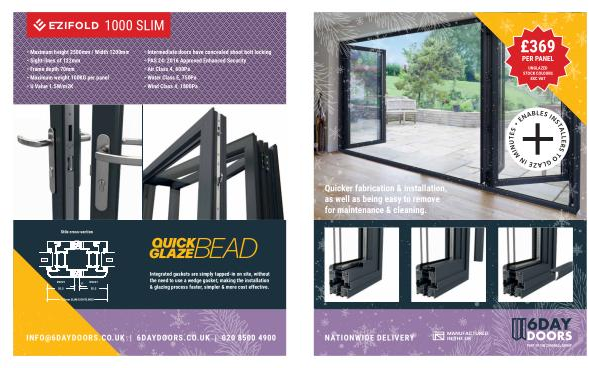

1000 SLIM
• Maximum height 2500mm / Width 1200mm
• Sight-lines Maximum height of 122mm
2500mm / width 1200mm
• Frame
Sight-lines depth of 70mm
122mm Frame depth 70mm
• Maximum weight 100KG per panel
• Maximum weight 100KG per panel
• U Value 1.5W / m2K
• U Value 1.5W / m2K
• Intermediate doors have concealed shoot bolt locking
• PAS 24 : 2016 Approved Enhanced Security
• Air Class 4 , 600Pa
• Water Class E , 750Pa
• Wind Class 4 , 1800Pa
1000 Slim Profile
• Air Class 4 , 600Pa
• Water Class E , 750Pa
• Wind Class 4 , 1800Pa
• Intermediate doors have
74.6 concealed shoot bolt locking .
28 mm
97.5 |
55.5
31 11
|
DV14 DV221 |
Q a f |
70
Stile cross-section
28mm 28mm
|
DV221
55.5
|
11 |
DV221
55.5
|
Integrated gaskets are simply tapped-in on site , without the need to use a wedge gasket ; making the installation & glazing process faster , simpler & more cost effective . |
122mm SLIM SIGHTLINES
