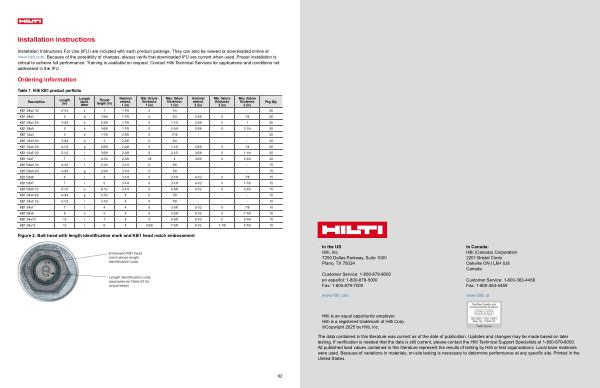

Installation instructions
Installation Instructions For Use( IFU) are included with each product package. They can also be viewed or downloaded online at www. hilti. com. Because of the possibility of changes, always verify that downloaded IFU are current when used. Proper installation is critical to achieve full performance. Training is available on request. Contact Hilti Technical Services for applications and conditions not addressed in the IFU.
Ordering information
Table 7. Hilti KB1 product portfolio
Description
Length( in)
Length ident. letter
Thread length( in)
Nominal embed. 1( in)
Min. fixture thickness 1( in)
Max. fixture thickness 1( in)
Nominal embed. 2( in)
Min. fixture thickness 2( in)
Max. fixture thickness 2( in)
KB1 3 / 8x2 1 / 2 2-1 / 2 c 1 1-7 / 8 0 1 / 4--- 50 KB1 3 / 8x3 3 d 1-5 / 8 1-7 / 8 0 3 / 4 2-3 / 8 0 1 / 4 50 KB1 3 / 8x3 3 / 4 3-3 / 4 e 2-3 / 8 1-7 / 8 0 1-1 / 2 2-3 / 8 0 1 50 KB1 3 / 8x5 5 h 3-5 / 8 1-7 / 8 0 2-3 / 4 2-3 / 8 0 2-1 / 4 50 KB1 1 / 2x3 3 d 1-1 / 8 2-3 / 8 0 1 / 16--- 20 KB1 1 / 2x3 3 / 4 3-3 / 4 e 2 2-3 / 8 0 3 / 4--- 20 KB1 1 / 2x4 1 / 2 4-1 / 2 g 2-5 / 8 2-3 / 8 0 1-1 / 2 3-5 / 8 0 1 / 4 20 KB1 1 / 2x5 1 / 2 5-1 / 2 i 3-5 / 8 2-3 / 8 0 2-1 / 2 3-5 / 8 0 1-1 / 4 20 KB1 1 / 2x7 7 l 4-1 / 2 2-3 / 8 1 / 2 4 3-5 / 8 0 2-3 / 4 20 KB1 5 / 8x4 1 / 4 4-1 / 4 f 2-1 / 4 3-1 / 4 0 3 / 8--- 15 KB1 5 / 8x4 3 / 4 4-3 / 4 g 2-3 / 4 3-1 / 4 0 7 / 8--- 15 KB1 5 / 8x6 6 j 4 3-1 / 4 0 2-1 / 8 4-1 / 2 0 7 / 8 15 KB1 5 / 8x7 7 l 5 3-1 / 4 0 3-1 / 8 4-1 / 2 0 1-7 / 8 15 KB1 5 / 8x8 1 / 2 8-1 / 2 o 6-1 / 2 3-1 / 4 0 4-5 / 8 4-1 / 2 0 3-3 / 8 15 KB1 3 / 4x4 3 / 4 4-3 / 4 g 2-1 / 2 4 0 1 / 8--- 10 KB1 3 / 4x5 1 / 2 5-1 / 2 i 3-1 / 4 4 0 7 / 8--- 10 KB1 3 / 4x7 7 l 4 4 0 2-3 / 8 5-1 / 2 0 7 / 8 10 KB1 3 / 4x8 8 n 5 4 0 3-3 / 8 5-1 / 2 0 1-7 / 8 10 KB1 3 / 4x10 10 r 7 4 0 5-3 / 8 5-1 / 2 0 3-7 / 8 10 KB1 3 / 4x12 12 t 6 4 2-5 / 8 7-3 / 8 5-1 / 2 1-1 / 8 5-7 / 8 10
Figure 2. Bolt head with length identification mark and KB1 head notch embossment
Pkg Qty
92
