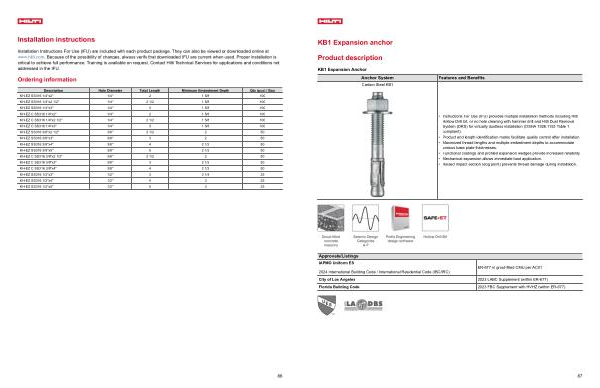

Installation instructions
Installation Instructions For Use( IFU) are included with each product package. They can also be viewed or downloaded online at www. hilti. com. Because of the possibility of changes, always verify that downloaded IFU are current when used. Proper installation is critical to achieve full performance. Training is available on request. Contact Hilti Technical Services for applications and conditions not addressed in the IFU.
Ordering information
Description
Hole Diameter
Total Length
Minimum Embedment Depth
Qty( pcs) / Box
KH-EZ SS316 1 / 4 '' x2 ''
1 / 4 ''
2
1 5 / 8
100
KH-EZ SS316 1 / 4 '' x2 1 / 2 ''
1 / 4 ''
2 1 / 2
1 5 / 8
100
KH-EZ SS316 1 / 4 '' x3 ''
1 / 4 ''
3
1 5 / 8
100
KH-EZ C SS316 1 / 4 '' x2 ''
1 / 4 ''
2
1 5 / 8
100
KH-EZ C SS316 1 / 4 '' x2 1 / 2 ''
1 / 4 ''
2 1 / 2
1 5 / 8
100
KH-EZ C SS316 1 / 4 '' x3 ''
1 / 4 ''
3
1 5 / 8
100
KH-EZ SS316 3 / 8 '' x2 1 / 2 ''
3 / 8 ''
2 1 / 2
2
50
KH-EZ SS316 3 / 8 '' x3 ''
3 / 8 ''
3
2
50
KH-EZ SS316 3 / 8 '' x4 ''
3 / 8 ''
4
2 1 / 2
50
KH-EZ SS316 3 / 8 '' x5 ''
3 / 8 ''
5
2 1 / 2
50
KH-EZ C SS316 3 / 8 '' x2 1 / 2 ''
3 / 8 ''
2 1 / 2
2
50
KH-EZ C SS316 3 / 8 '' x3 ''
3 / 8 ''
3
2 1 / 2
50
KH-EZ C SS316 3 / 8 '' x4 ''
3 / 8 ''
4
2 1 / 2
50
KH-EZ SS316 1 / 2 '' x3 ''
1 / 2 ''
3
2 1 / 4
25
KH-EZ SS316 1 / 2 '' x4 ''
1 / 2 ''
4
3
25
KH-EZ SS316 1 / 2 '' x5 ''
1 / 2 ''
5
3
25
