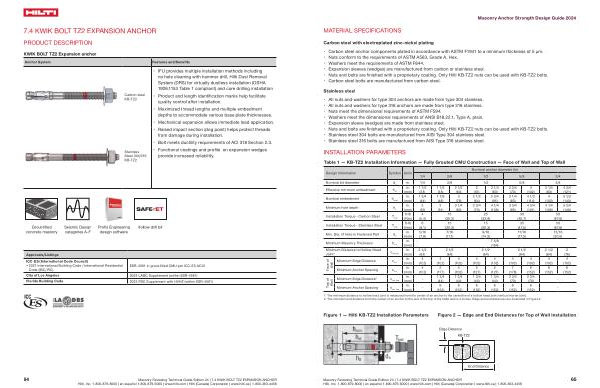

7.4 KWIK BOLT TZ2 EXPANSION ANCHOR
PRODUCT DESCRIPTION
KWIK BOLT TZ2 Expansion anchor
Anchor System Features and Benefits
Carbon steel KB-TZ2
Stainless Steel 304 / 316 KB-TZ2
• IFU provides multiple installation methods including no hole cleaning with hammer drill , Hilti Dust Removal System ( DRS ) for virtually dustless installation ( OSHA 1926.1153 Table 1 compliant ) and core drilling installation
• Product and length identification marks help facilitate quality control after installation .
• Maximized thread lengths and multiple embedment depths to accommodate various base plate thicknesses .
• Mechanical expansion allows immediate load application .
• Raised impact section ( dog point ) helps protect threads from damage during installation .
• Bolt meets ductility requirements of ACI 318 Section 2.3 .
• Functional coatings and profile on expansion wedges provide increased reliability .
Grout-filled concrete masonry |
Seismic Design categories A-F |
Profis Engineering design software |
Hollow drill bit |
Approvals / Listings |
|
|
|
ICC-ES ( International Code Council )
• 2021 International Building Code / International Residential Code ( IBC / IRC )
ESR-4561 in grout-filled CMU per ICC-ES AC01
City of Los Angeles 2023 LABC Supplement ( within ESR-4561 ) Florida Building Code 2023 FBC Supplement with HVHZ ( within ESR-4561 )
64 Masonry Fastening Technical Guide Edition 24 | 7.4 KWIK BOLT TZ2 EXPANSION ANCHOR Hilti , Inc . 1-800-879-8000 | en español 1-800-879-5000 | www . hilti . com | Hilti ( Canada ) Corporation | www . hilti . ca | 1-800-363-4458
