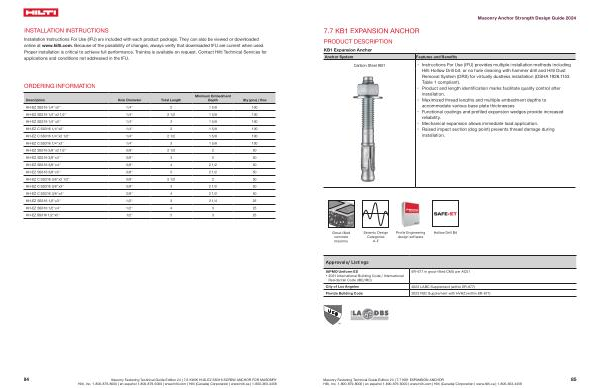

7.7 KB1 EXPANSION ANCHOR
PRODUCT DESCRIPTION
KB1 Expansion Anchor Anchor System
Carbon Steel KB1
Features and Benefits
Masonry Anchor Strength Design Guide 2024
• Instructions For Use ( IFU ) provides multiple installation methods including Hilti Hollow Drill bit . or no hole cleaning with hammer drill and Hilti Dust Removal System ( DRS ) for virtually dustless installation ( OSHA 1926.1153 Table 1 compliant ).
• Product and length identification marks facilitate quality control after installation .
• Maximized thread lengths and multiple embedment depths to accommodate various base plate thicknesses .
• Functional coatings and profiled expansion wedges provide increased reliability .
• Mechanical expansion allows immediate load application .
• Raised impact section ( dog point ) prevents thread damage during installation .
Grout-filled concrete masonry |
Seismic Design Categories A-F |
Profis Engineering design software |
Hollow Drill Bit |
Approvals / Listings
IAPMO Uniform ES
• 2021 International Building Code / International Residential Code ( IBC / IRC )
ER-677 in grout-filled CMU per AC01
City of Los Angeles 2023 LABC Supplement ( within ER-677 ) Florida Building Code 2023 FBC Supplement with HVHZ ( within ER-677 )
Masonry Fastening Technical Guide Edition 24 | 7.7 KB1 EXPANSION ANCHOR Hilti , Inc . 1-800-879-8000 | en español 1-800-879-5000 | www . hilti . com | Hilti ( Canada ) Corporation | www . hilti . ca | 1-800-363-4458
85
