MATERIAL SPECIFICATIONS

Heat treated carbon steel with a minimum zinc coating of 0.0003 inch ( 8 μm ) thick in accordance with DIN EN ISO 4042 . KH-EZ CRC has mechanically deposited zinc coating with a minimum thickness of 0.0021 inch ( 53 μm ) in accordance with ASTM B695 , Class 55 .

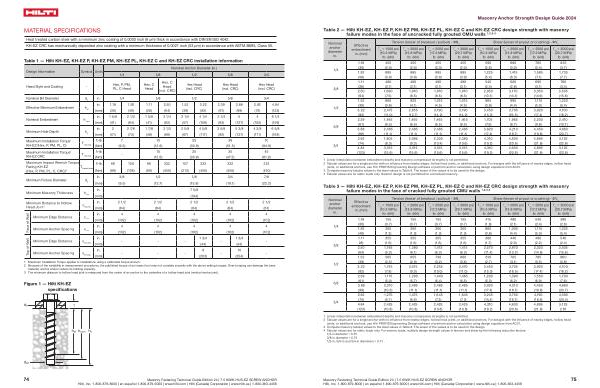

Table 1 — Hilti KH-EZ , KH-EZ P , KH-EZ PM , KH-EZ PL , KH-EZ C and KH-EZ CRC installation information

Design Information Symbol Units

Nominal Anchor Diameter ( in .) 1 / 4 3 / 8 1 / 2 5 / 8 3 / 4

Head Style and Coating - -

Hex , P , PM , PL , C Head

Hex , C Head

Hex , C Head ( incl . CRC )

Hex Head ( incl . CRC )

Nominal Bit Diameter d o in . 1 / 4 3 / 8 1 / 2 5 / 8 3 / 4

Effective Minimum Embedment h ef in . 1.18 1.92 1.11 2.50 1.52 3.22 2.39 3.88 2.92 4.84 ( mm ) ( 30 ) ( 49 ) ( 28 ) ( 64 ) ( 39 ) ( 82 ) ( 61 ) ( 99 ) ( 74 ) ( 123 )

Nominal Embedment h nom in . 1 5 / 8 2 1 / 2 1 5 / 8 3 1 / 4 2 1 / 4 4 1 / 4 3 1 / 4 5 4 6 1 / 4 ( mm ) ( 41 ) ( 64 ) ( 41 ) ( 83 ) ( 57 ) ( 108 ) ( 83 ) ( 127 ) ( 102 ) ( 159 )

Minimum Hole Depth h o in . 2 2 7 / 8 1 7 / 8 3 1 / 2 2 5 / 8 4 5 / 8 3 5 / 8 5 3 / 8 4 3 / 8 6 5 / 8 ( mm ) ( 51 ) ( 73 ) ( 48 ) ( 89 ) ( 67 ) ( 117 ) ( 92 ) ( 137 ) ( 111 ) ( 168 )

Maximum Installation Torque 1 KH-EZ ( Hex , P , PM , PL , C )

Maximum Installation Torque 1 KH-EZ CRC

T inst , max ft-lb 7 10 25 38 70 ( Nm ) ( 9.5 ) ( 13.6 ) ( 33.9 ) ( 51.5 ) ( 94.9 )

T inst , max

Maximum Impact Wrench Torque Rating KH-EZ ( Hex , P , PM , PL , C , CRC ) 2 T impact , max ft-lb 10 25 35 45

- ( Nm ) ( 13.6 ) ( 33.9 ) ( 47.5 ) ( 61.0 )

ft-lb 66 100 66 332 157 332 332 332 ( Nm ) ( 89 ) ( 136 ) ( 89 ) ( 450 ) ( 213 ) ( 450 ) ( 450 ) ( 450 )

Minimum Fixture Diameter d h in . 3 / 8 1 / 2 5 / 8 3 / 4 7 / 8 ( mm ) ( 9.5 ) ( 12.7 ) ( 15.9 ) ( 19.1 ) ( 22.2 )

Minimum Masonry Thickness h min in . 7 5 / 8 ( mm ) ( 194 )

Minimum Distance to Hollow in . 2 1 / 2 2 1 / 2 2 1 / 2 2 1 / 2 2 1 / 2 c Head Joint 3 min , HJ

( mm ) ( 64 ) ( 64 ) ( 64 ) ( 64 ) ( 64 )

Face of Wall Top of Wall

Minimum Edge Distance c min in . 4 4 4 4 4 ( mm ) ( 102 ) ( 102 ) ( 102 ) ( 102 ) ( 102 )

Minimum Anchor Spacing s min in . 4 4 4 4 4 ( mm ) ( 102 ) ( 102 ) ( 102 ) ( 102 ) ( 102 ) in .

1 3 / 4 1 3 / 4

Minimum Edge Distance c min , top - - -

- ( mm ) ( 44 ) ( 44 )

in . 8

10 Minimum Anchor Spacing s min , top

- - -

- ( mm ) ( 203 ) ( 254 )

1 Maximum Installation Torque applies to installations using a calibrated torque wrench . 2 Because of the variability in measurement procedures , the published torque of an impact tool may not correlate properly with the above setting torques . Over-torquing can damage the base material , anchor and / or reduce its holding capacity . 3 The minimum distance to hollow head joint is measured from the center of an anchor to the centerline of a hollow head joint ( vertical mortar joint ).

Figure 1 — Hilti KH-EZ specifications
