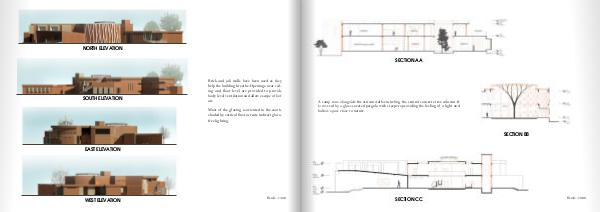

NORTH ELEVATION
SOUTH ELEVATION
Brick and jali walls have been used as they
help the building breathe. Openings near ceiling and floor level are provided to provide
body level ventilation and allow escape of hot
air.
Most of the glazing is oriented to the south,
shaded by vertical fins to create indirect glarefree lighting.
EAST ELEVATION
WEST ELEVATION
Scale 1:300
