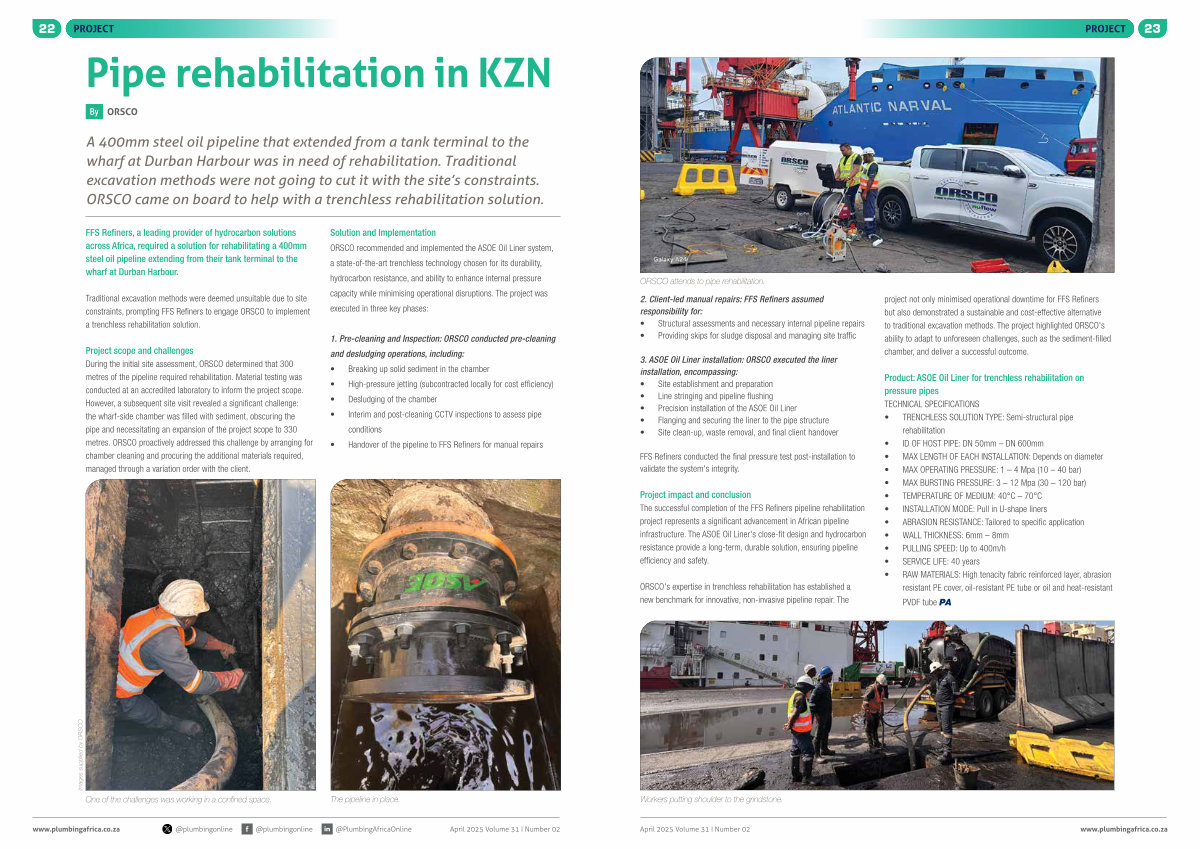

PROJECT 23
ORSCO attends to pipe rehabilitation .
2 . Client-led manual repairs : FFS Refiners assumed responsibility for :
• Structural assessments and necessary internal pipeline repairs
• Providing skips for sludge disposal and managing site traffic
3 . ASOE Oil Liner installation : ORSCO executed the liner installation , encompassing :
• Site establishment and preparation
• Line stringing and pipeline flushing
• Precision installation of the ASOE Oil Liner
• Flanging and securing the liner to the pipe structure
• Site clean-up , waste removal , and final client handover
FFS Refiners conducted the final pressure test post-installation to validate the system ' s integrity .
Project impact and conclusion The successful completion of the FFS Refiners pipeline rehabilitation project represents a significant advancement in African pipeline infrastructure . The ASOE Oil Liner ' s close-fit design and hydrocarbon resistance provide a long-term , durable solution , ensuring pipeline efficiency and safety .
ORSCO ' s expertise in trenchless rehabilitation has established a new benchmark for innovative , non-invasive pipeline repair . The project not only minimised operational downtime for FFS Refiners but also demonstrated a sustainable and cost-effective alternative to traditional excavation methods . The project highlighted ORSCO ' s ability to adapt to unforeseen challenges , such as the sediment-filled chamber , and deliver a successful outcome .
Product : ASOE Oil Liner for trenchless rehabilitation on pressure pipes TECHNICAL SPECIFICATIONS
• TRENCHLESS SOLUTION TYPE : Semi-structural pipe rehabilitation
• ID OF HOST PIPE : DN 50mm – DN 600mm
• MAX LENGTH OF EACH INSTALLATION : Depends on diameter
• MAX OPERATING PRESSURE : 1 – 4 Mpa ( 10 – 40 bar )
• MAX BURSTING PRESSURE : 3 – 12 Mpa ( 30 – 120 bar )
• TEMPERATURE OF MEDIUM : 40 ° C – 70 ° C
• INSTALLATION MODE : Pull in U-shape liners
• ABRASION RESISTANCE : Tailored to specific application
• WALL THICKNESS : 6mm – 8mm
• PULLING SPEED : Up to 400m / h
• SERVICE LIFE : 40 years
• RAW MATERIALS : High tenacity fabric reinforced layer , abrasion resistant PE cover , oil-resistant PE tube or oil and heat-resistant PVDF tube PA
Workers putting shoulder to the grindstone .
