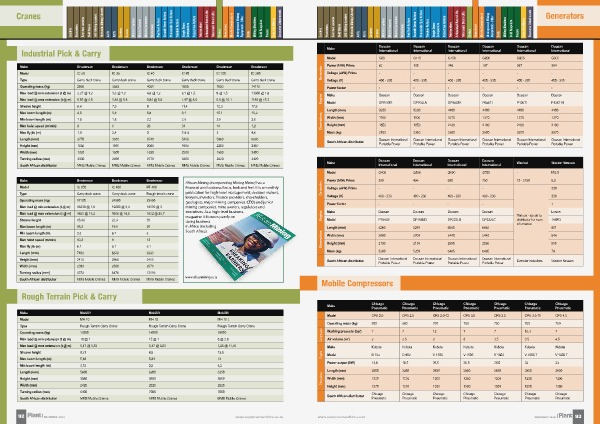

Plant Equipment and Hire Equipment Specs Handbook 2020 | Page 94

Cranes
Industrial Pick & Carry
Make Broderson Broderson Broderson Broderson Broderson Broderson
Model IC 20 IC 35 IC 40 IC 80 IC 100 IC 200
Type Carry deck crane Carry deck crane Carry deck crane Carry deck crane Carry deck crane Carry deck crane
Operating mass (kg) 2900 3565 4050 7600 7950 14110
Max load @ min extension (t @ m) 2,27 @ 1,2 3,6 @ 1,2 4,8 @ 1,2 8,1 @ 1,5 9 @ 1,5 13600 @ 1,8
Max load @ max extension (t @ m) 0,55 @ 4,5 0,84 @ 5,8 0,84 @ 5,8 1,07 @ 8,5 0,8 @ 10,1 1180 @ 15,3
Sheave height 6,4 7,9 8 11,4 12,3 17,9
Max boom length (m) 4,5 5,8 5,8 9,1 10,1 15,2
Min boom length (m) 1,5 1,8 2,2 2,6 3,5 3,6
Max hoist speed (m/min) 6 6 26 34 14 1,2
Max fly jib (m) 1,9 2,4 3 3 & 5 3 4,6
Length (mm) 2770 3630 3740 5400 5960 6960
Height (mm) 1680 1980 2060 1980 2260 2450
Width (mm) 1220 1500 1630 2200 1980 2400
Turning radius (mm) 3000 2400 2770 3400 2920 4420
South African distributor MMS Mobile Cranes MMS Mobile Cranes MMS Mobile Cranes MMS Mobile Cranes MMS Mobile Cranes MMS Mobile Cranes
Make Broderson Broderson Broderson Model IC 250 IC 400 RT 400 Type Carry deck crane Carry deck crane Rough terrain crane Operating mass (kg) 17100 24900 23450 Max load @ min extension (t @ m) 16330 @ 1,8 19000 @ 2,4 18000 @ 3 Max load @ max extension (t @ m) 1650 @ 15,2 1600 @ 16,5 1632 @ 20,7 Sheave height 18,46 22,9 30 Max boom length (m) 15,2 19,5 20 Min boom length (m) 3,6 6,7 6 Max hoist speed (m/min) 10,2 9 12 Max fly jib (m) 6,1 6,1 6,1 Length (mm) 7160 8320 9390 Height (mm) 2410 2960 3400 Width (mm) 2390 2590 2570 Turning radius (mm) 4370 4870 12000 South African distributor MMS Mobile Cranes MMS Mobile Cranes MMS Mobile Cranes
African Mining (incorporating Mining Mirror) has a
financial and business focus, look and feel. It is a monthly
publication for high-level management, decision makers,
lawyers, investors, finance providers, shareholders,
geologists, major mining companies, CEOs and junior
mining companies, mine owners, regulators and
executives. As a high-level business
magazine, it focuses purely on
doing business
in Africa (including
South Africa).
www.africanmining.co.za
Rough Terrain Pick & Carry
Make Mobilift Mobilift Mobilift
Model MH 10 MH 15 MH 15 L
Type Rough Terrain Carry Crane Rough Terrain Carry Crane Rough Terrain Carry Crane
Operating mass (kg) 11000 18000 19000
Max load @ min extension (t @ m) 10 @ 1 15 @ 1 8 @ 2,8
Max load @ max extension (t @ m) 5,17 @ 5,83 5,17 @ 5,83 1,25 @ 11,10
Sheave height 9,21 8,5 13,5
Max boom length (m) 5,83 5,83 12
Min boom length (m) 3,15 2,5 6,2
Length (mm) 5830 6200 6250
Height (mm) 3380 3550 3550
Width (mm) 2420 2520 2520
Turning radius (mm) 6400 7000 7000
South African distributor MMS Mobile Cranes MMS Mobile Cranes MMS Mobile Cranes
