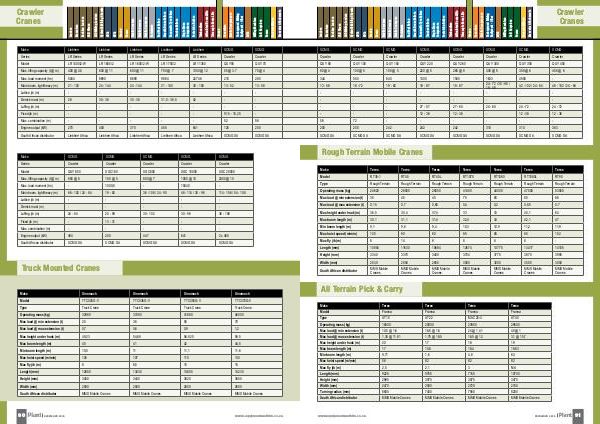

Plant Equipment and Hire Equipment Specs Handbook 2020 | Page 92

Make Liebherr Liebherr Liebherr Liebherr Liebherr XCMG XCMG
Series LR Series LR Series LR Series LR Series LR Series Crawler Crawler
Model LR 1400/2-W LR 1600/2 LR 1600/2-W LR 1750/2 LR 11350 QUY55 QUY 70
Max. lifting capacity (t @ m) 400 @ 4,5 600 @ 11 600 @ 11 750 @ 7 1350 @ 12 55 @ 3,7 70 @ 4
Max. load moment (tm) 5044 8690 8690 9864 22748 210 280
Main boom, light/heavy (m) 21 - 120 24 - 144 24 - 144 21 - 140 30 - 150 13 - 52 13 - 58
Lattice jib (m) - - - - - - -
Derrick mast (m) 28 30 - 36 30 - 36 31,5 - 38,5 42 - -
Luffing jib (m) - - - - - - -
Fixed jib (m) - - - - - 9,15 - 15,25 -
Max. combination (m) - - - - - 52 58
Engine output (kW) 270 400 370 455 641 125 200
South African distributor Liebherr Africa Liebherr Africa Liebherr Africa Liebherr Africa Liebherr Africa XCMG SA XCMG SA
Make XCMG
XCMG
XCMG
XCMG
Crawler
Cranes
XCMG
Series Crawler Crawler Crawler Crawler Crawler
Model QUY 650 XGC180 XGC800 XGC 15000 XGC 28000
Max. lifting capacity (t @ m) 650 @ 6 180 @ 5 800 @ 7 1000 @ 10 2000 @ 10
Max. load moment (tm) - 1000,8 - 15040 -
Main boom, light/heavy (m) 66 - 102 / 24 - 84 19 - 82 36 - 108 / 24 - 90 48 - 114 / 30 - 96 114 - 156 / 54 - 108
Lattice jib (m) - - - - -
Derrick mast (m) - - - - -
Luffing jib (m) 24 - 84 20 - 59 30 - 102 30 - 96 36 - 108
Fixed jib (m) - 13 - 31 - - -
Max. combination (m) - - - - -
Engine output (kW) 494 250 447 641 2 x 480
South African distributor XCMG SA XCMG SA XCMG SA XCMG SA XCMG SA
Truck Mounted Cranes
Make Sinomach Sinomach Sinomach Sinomach
Model TTC025G-V TTC036G-V TTC055G-V TTC070G-V
Type Truck Crane Truck Crane Truck Crane Truck Crane
Operating mass (kg) 32980 37490 41880 46000
Max load @ min extension (t) 25 36 55 70
Max load @ max extension (t) 0,7 0,6 0,9 1,2
Max height under hook (m) 49,23 54,68 56,825 59,5
Max boom length (m) 40 41 42 44,5
Min boom length (m) 10,5 11 11,1 11,6
Max hoist speed (m/min) 125 107 110 130
Max fly jib (m) 8 8,5 15 15
Length (mm) 12650 13430 13655 14230
Height (mm) 3450 3430 3620 3650
Width (mm) 2500 2500 2800 2800
South African distributor MMS Mobile Cranes MMS Mobile Cranes MMS Mobile Cranes MMS Mobile Cranes
