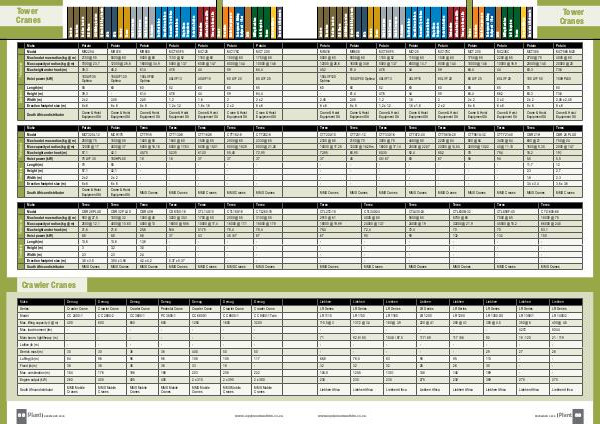

Plant Equipment and Hire Equipment Specs Handbook 2020 | Page 90

Make Potain Potain Potain Potain Potain Potain Potain
Model MR225A MR418 MR608 MCT85 F5 MC125 MC175C MCT 205
Max load at max radius (kg @ m) 2150 @ 55 5000 @ 60 9000 @ 60 1100 @ 52 1150 @ 60 1500 @ 60 1750 @ 65
Max capacity at radius (kg @ m) 7000 @ 23,7 12000 @ 26,6 16000 @ 34,9 5000 @ 13,7 6000 @ 14,7 8000 @ 14,4 10000 @ 14,6
Max height under hook (m) 39,3 45,2 61,4 47,6 44 59 64,4
Hoist power (kW) 100LVF35
Optima 150LVF120
Optima 150LVF80
Optima 40LVF13 40LVF15 60 LVF 20 60 LVF 25
Length (m) 55 60 60 52 60 60 65
Height (m) 39,3 - 61,4 47,6 44 59 64,4
Width (m) 2 x 2 2,45 2,45 1,2 1,6 2 2 x 2
Erection footprint size (m) 6 x 6 6 x 6 8 x 8 1,2 x 1,2 1,6 x 1,6 2 x 2 6 x 6
South African distributor Crane & Hoist
Equipment SA Crane & Hoist
Equipment SA Crane & Hoist
Equipment SA Crane & Hoist
Equipment SA Crane & Hoist
Equipment SA Crane & Hoist
Equipment SA Crane & Hoist
Equipment SA
Make Potain Potain Terex Terex Terex Terex Terex
Model MCT325 L12 MCH175 CTT91-5 CTT132-6 CTT162-8 CTT182-8 CTT202-8
Max load at max radius (kg @ m) 2500 @ 75 1500 @ 55 1400 @ 50 1540 @ 60 1500 @ 65 2000 @ 65 2330 @ 65
Max capacity at radius (kg @ m) 12000 @ 17 4000 @ 37 5000 @ 16,16 6000 @ 17,63 8000 @ 15,01 8000 @ 18,39 8000 @ 21,28
Max height under hook (m) 57,1 42,1 45,75 52,35 61,30 55,40 72,95
Hoist power (kW) 75 LVF 30 150HPL50 18 18 37 37 37
Length (m) 75 55 - - - - -
Height (m) 57,1 42,1 - - - - -
Width (m) 2 x 2 2 x 2 - - - - -
Erection footprint size (m) 6 x 6 6 x 6 - - - - -
South African distributor Crane & Hoist
Equipment SA Crane & Hoist
Equipment SA MMS Cranes MMS Cranes MMS Cranes MMS Cranes MMS Cranes
Make Terex Terex Terex Terex Terex Terex Terex
Model CBR 28 PLUS CBR 32 PLUS CBR 40H CDK100-16 CTL140-10 CTL180-16 CTL260-18
Max load at max radius (kg @ m) 900 @ 27,8 1000 @ 32 1000 @ 40 3200 @ 30,3 1700 @ 50 2000 @ 55 3100 @ 55
Max capacity at radius (kg @ m) 2500 @ 12,1 4000 @ 10,60 4000 @ 13 16000 @ 9,56 10000 @ 17,4 16000 @ 17,1 18000 @ 17,9
Max height under hook (m) 21,6 21,6 25,6 N/A 51,75 78,4 78,4
Hoist power (kW) 8,8 8,8 8,8 37 43 45 / 67 67
Length (m) 13,6 13,6 13,6 - - - -
Height (m) 3 3,2 3,5 - - - -
Width (m) 2,3 2,3 2,4 - - - -
Erection footprint size (m) 3,8 x 3,8 3,94 x 3,94 4,2 x 4,2 5,37 x 5,37 - - -
South African distributor MMS Cranes MMS Cranes MMS Cranes MMS Cranes MMS Cranes MMS Cranes MMS Cranes
Tower
Cranes
Crawler Cranes
Make Demag Demag Demag Demag Demag Demag Demag
Series Crawler Crane Crawler Crane Crawler Crane Pedestal Crane Crawler Crane Crawler Crane Crawler Crane
Model CC 2400-1 CC 2800-2 CC 3800-1 PC 3800-1 CC 6800-1 CC 8800-1 CC 8800-1 Twin
Max. lifting capacity (t @ m) 400 600 650 650 1250 1600 3200
Max. load moment (tm) - - - - - - -
Main boom, light/heavy (m) - - - - - - -
Lattice jib (m) - - - - - - -
Derrick mast (m) 30 30 36 36 40,5 50 50
Luffing jib (m) 84 96 96 96 108 108 117
Fixed jib (m) 36 36 36 36 33 18 -
Max. combination (m) 164 176 186 186 203 208 222
Engine output (kW) 260 405 405 405 2 x 315 2 x 390 2 x 380
South African distributor MMS Mobile
Cranes MMS Mobile
Cranes MMS Mobile
Cranes MMS Mobile
Cranes MMS Mobile
Cranes MMS Mobile
Cranes MMS Mobile
Cranes
