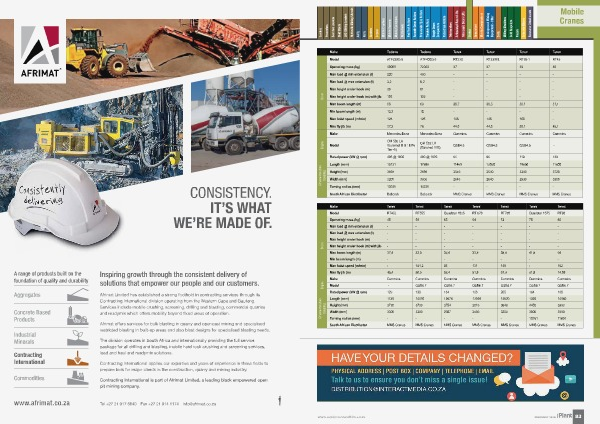

Backhoe Excavators Mobile Cranes Make Tadano Tadano Terex Terex Terex Terex Model ATF220G-5 ATF400G-5 RT230 RT230XL RT35-1 RT45 Operating mass (kg) 60000 72000 27 27 35 45 Max load @ min extension (t) 220 400 - - - - Max load @ max extension (t) 3,2 6,2 - - - - Max height under hook (m) 69 61 - - - - Max height under hook (m) with jib 108 122 - - - - Max boom length (m) 68 60 28,7 30,5 30,1 31,1 Min boom length (m) 13,2 15 - - - - Max hoist speed (m/min) 128 125 145 145 105 - Max fly jib (m) 37,2 76 44,8 44,8 38,1 45,1 Make Mercedes-Benz Mercedes-Benz Cummins Cummins Cummins Cummins Model OM 502 LA (Euromot III B / EPA Tier 4i) OM 502 LA (Euromot III B) QSB4.5 QSB4.5 QSB4.5 - Rated power (kW @ rpm) 405 @ 1800 480 @ 1800 96 96 119 129 Length (mm) 15121 17898 11460 12060 10850 11600 Height (mm) 3939 3989 3540 3540 3340 3720 Width (mm) 3200 3000 2640 2640 2530 3300 Turning radius (mm) 13025 14225 - - - - South African Distributor Babcock Babcock MMS Cranes MMS Cranes MMS Cranes MMS Cranes Make Terex Terex Terex Terex Terex Terex Terex Model RT45L RT555 Quadstar 1065 RT 670 RT780 Quadstar 1075 RT90 Operating mass (kg) 45 50 65 64 73 75 86 Max load @ min extension (t) - - - - - - - Max load @ max extension (t) - - - - - - - Max height under hook (m) - - - - - - - Max height under hook (m) with jib - - - - - - - Max boom length (m) 37,4 33,5 32,4 33,8 38,4 41,8 64 Min boom length (m) - - - - - - - Max hoist speed (m/min) - 151,2 85 131 149 - 152 Max fly jib (m) 45,4 50,9 52,4 51,8 57,9 61,8 14,08 Make Cummins Cummins Cummins Cummins Cummins Cummins Cummins Model - QSB6.7 QSB6.7 QSB6.7 QSB6.7 QSB6.7 QSB6.7 Rated power (kW @ rpm) 129 138 164 160 205 164 168 Length (mm) 1130 14470 12676 13990 14630 1320 14080 Height (mm) 3720 3720 3754 3810 3640 4450 3902 Width (mm) 3300 3300 2987 3450 3350 3000 3000 Turning radius (mm) - - - - - 10761 11800 South African Distributor MMS Cranes MMS Cranes MMS Cranes MMS Cranes MMS Cranes MMS Cranes MMS Cranes www.equipmentandhire.co.za DECEMBER 2019 83
