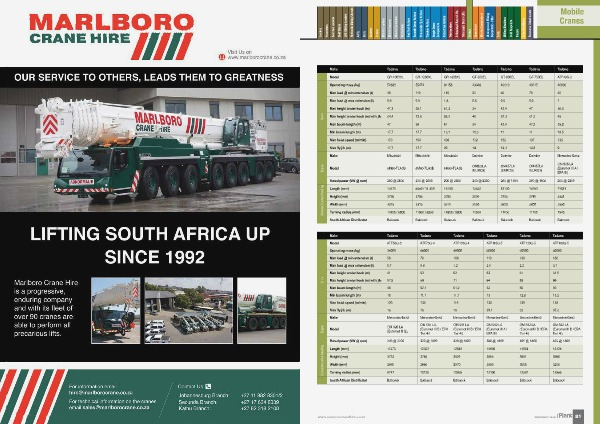

Plant Equipment and Hire Equipment Specs Handbook 2020 | Page 83

Backhoe
Excavators
Mobile
Cranes
Make Tadano Tadano Tadano Tadano Tadano Tadano Tadano
Model GR-1000XL GR-1200XL GR-1600XL GT-300EL GT-600EL GT-750EL ATF40G-2
Operating mass (kg) 52380 55474 91158 29648 40010 46615 40000
Max load @ min extension (t) 90 110 145 30 60 75 40
Max load @ max extension (t) 0,9 0,9 1,8 0,6 0,6 0,6 1
Max height under hook (m) 47,1 56,1 61,3 34 43,4 47 36,5
Max height under hook (m) with jib 64,4 73,6 92,2 48 57,3 61,2 45
Max boom length (m) 47 56 61 34 43,4 47,3 35,2
Min boom length (m) 17,7 17,7 13,1 10,3 11 11 10,5
Max hoist speed (m/min) 170 154 136 132 132 137 135
Max fly jib (m) 17,7 17,7 30 14 14,3 14,3 9
Make Mitsubishi Mitsubishi Mitsubishi Daimler Daimler Daimler Mercedes-Benz
Model 6M60-TLA3B 6M60-TLA3B 6M60-TLA3B OM926LA
(EURO3) OM457LA
(EURO3) OM457LA
(EURO3) OM 906 LA
(Euromot III A /
EPA III)
Rated power (kW @ rpm) 200 @ 2600 200 @ 2600 200 @ 2600 240 @ 2200 260 @ 1900 260 @ 1900 205 @ 2200
Length (mm) 14375 8580 / 14 450 16190 12620 13140 14180 11031
Height (mm) 3795 3795 3785 3800 3780 3740 3551
Width (mm) 3315 3315 3315 2550 2800 2800 2550
Turning radius (mm) 11900 / 6800 11900 / 6800 14900 / 9900 10500 11700 11700 7545
South African Distributor Babcock Babcock Babcock Babcock Babcock Babcock Babcock
Make Tadano
Tadano
Tadano
Tadano
Tadano
Tadano
Model ATF50G-3 ATF70G-4 ATF100G-4 ATF110G-5 ATF130G-5 ATF180G-5
Operating mass (kg) 36000 48000 48000 60000 60000 60000
Max load @ min extension (t) 50 70 100 110 130 180
Max load @ max extension (t) 0,7 0,6 1,2 2,5 2,2 3,1
Max height under hook (m) 41 53 52 53 61 61,5
Max height under hook (m) with jib 57,5 69 71 84 93 99
Max boom length (m) 40 52,1 51,2 52 60 60
Min boom length (m) 10 11,1 11,1 13 12,8 13,2
Max hoist speed (m/min) 120 130 115 130 130 130
Max fly jib (m) 16 16 18 30,1 32 37,2
Make Mercedes-Benz Mercedes-Benz Mercedes-Benz Mercedes-Benz Mercedes-Benz Mercedes-Benz
Model OM 926 LA
(Euromot III B), OM 501 LA,
(Euromot III B / EPA
Tier 4i) OM 501 LA
(Euromot III B / EPA
Tier 4i) OM 502 LA
(Euromot III A /
EPA III) OM 502 LA
(Euromot III B / EPA
Tier 4i) OM 502 LA
(Euromot III B / EPA
Tier 4i),
Rated power (kW @ rpm) 240 @ 2200 320 @ 1800 320 @ 1800 390 @ 1800 405 @ 1800 405 @ 1800
Length (mm) 11373 12553 12846 14908 14854 15126
Height (mm) 3733 3785 3925 3995 3991 3990
Width (mm) 2660 2660 2970 3000 3000 3200
Turning radius (mm) 8747 10129 10869 12100 12281 12986
South African Distributor Babcock Babcock Babcock Babcock Babcock Babcock
www.equipmentandhire.co.za
DECEMBER 2019
81
