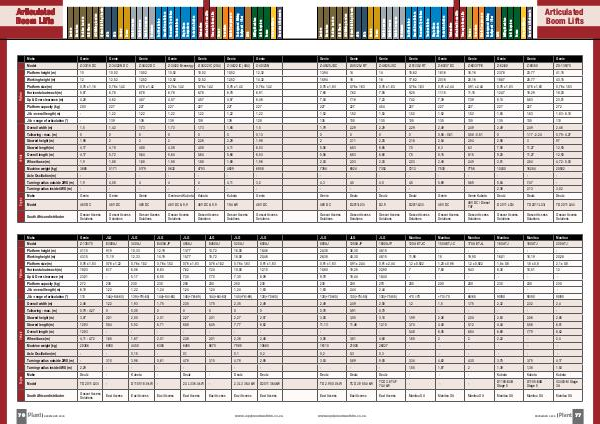

76 Articulated Boom Lifts Make Genie Genie Genie Genie Genie Genie Genie Model Z-33/18 DC Z-34/22N DC Z-34/22 DC Z-34/22 Bi-energy Z-34/22 IC (2X4) Z-34/22 IC (4X4) Z-40/23N Platform height (m) 10 10,52 10,52 10,52 10,52 10,52 12,32 Working height (m) 12 12,52 12,52 12,52 12,52 12,52 14,32 Platform size (m) 0,76 x 1,16 0,76 x 1,42 0,76 x 1,42 0,76 x 1,42 0,76 x 1,42 0,76 x 1,42 0,76 x 1,42 Horizontal outreach (m) 5,57 6,78 6,78 6,78 6,78 6,78 6,91 Up & Over clearance (m) 4,28 4,62 4,57 4,57 4,57 4,57 6,48 Platform capacity (kg) 200 227 227 227 227 227 227 Jib - overall length (m) - 1,22 1,22 1,22 1,22 1,22 1,22 Jib - range of articulation (°) - 139 139 139 139 139 128 Overall width (m) 1,5 1,42 1,73 1,73 1,73 1,85 1,5 Tailswing - max. (m) 0 0 0 0 0 0 0,13 Stowed height (m) 1,98 2 2 2 2,26 2,29 1,98 Stowed length (m) 4,17 4,19 4,08 4,08 4,08 4,11 6,53 Overall length (m) 4,17 5,72 5,64 5,64 5,64 5,66 6,53 Wheel base (m) 1,9 1,88 1,88 1,88 1,88 1,88 1,96 Machine weight (kg) 3665 5171 5179 5632 4793 4929 6908 Axle Oscillation (m) - - - - - - - Turning radius outside 2WS (m) 1,9 4,08 4 4 4 4,11 3,2 Turning radius inside 4WS (m) - - - - - - - Make Genie Genie Genie Genie and Kubota Kubota Kubota Genie Model 48V DC 48V DC 48V DC 48V DC & 9,9 48V DC & 9,9 19.4 kW 48V DC South African distributor Goscor Access Solutions Goscor Access Solutions Goscor Access Solutions Goscor Access Solutions Goscor Access Solutions Goscor Access Solutions Goscor Access Solutions Make Genie JLG JLG JLG JLG JLG JLG JLG Model Z-135/70 E300AJ 340AJ E400AJP 450AJ E450AJ 520AJ 600AJ Platform height (m) 41,15 9,19 10,33 12,19 13,77 13,72 16,00 18,46 Working height (m) 43,15 11,19 12,33 14,19 15,77 15,72 18,00 20,46 Platform size (m) 0,76 x 1,83 0,76 x 1,22 0,76 x 1,52 0,76 x 1,52 0,76 x 1,83 0,76 x 1,52 0,76 x 1,83 0,91 x 1,83 Horizontal outreach (m) 18,03 6,17 6,06 6,83 7,62 7,24 10,00 12,10 Up & Over clearance (m) 23,01 - 5,17 6,55 7,30 7,70 7,30 8,09 Platform capacity (kg) 272 230 230 230 250 230 250 230 Jib - overall length (m) 6,10 1,22 1,22 1,24 1,24 1,24 1,24 1,83 Jib - range of articulation (°) 110 144(+84/-60) 139(+79/-60) 144(+84/-60) 145(+76/-69) 144(+84/-60) 145(+76/-69) 130(+70/-60) Overall width (m) 2,46 1,22 1,93 1,75 2,35 1,75 2,35 2,49 Tailswing - max. (m) 0,79 - 4,27 0 0,05 0 0 0 0 0 Stowed height (m) 3,07 2,01 2,00 2,01 2,27 2,01 2,27 2,57 Stowed length (m) 12,93 5,54 5,52 6,71 6,58 6,45 7,77 8,82 Overall length (m) 12,93 - - - - - - - Wheel base (m) 4,11 - 4,72 1,65 1,87 2,01 2,36 2,01 2,36 2,48 Machine weight (kg) 20366 6900 4450 6350 6495 6670 7985 10660 Axle Oscillation (m) - - 0,15 - 0,1 - 0,1 0,2 Turning radius outside 2WS (m) - 3,10 3,96 0,61 4,78 3,15 4,78 2,95 Turning radius inside 4WS (m) 2,29 - - - - - - Make Deutz - Kubota - Deutz - Deutz Deutz Model TD 2011 L03i - D1105 18.5 kW - 2.3 L3 36.4 kW - 2.3 L3 36.4 kW D2011 36.4kW South African distributor Goscor Access Solutions Eazi Access Eazi Access Eazi Access Eazi Access Eazi Access Eazi Access Eazi Access DECEMBER 2019 www.equipmentandhire.co.za
