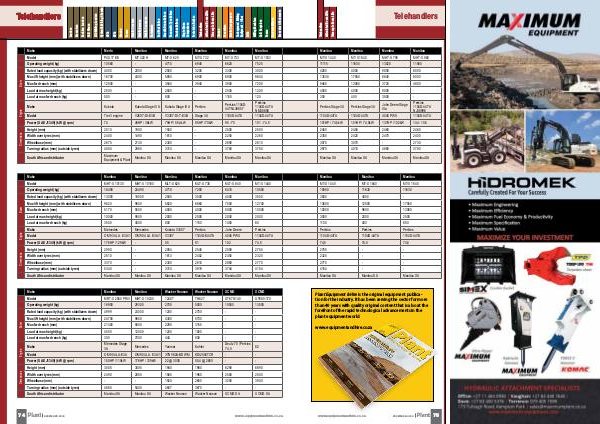

Plant Equipment and Hire Equipment Specs Handbook 2020

74 Make Merlo Manitou Manitou Manitou Manitou Manitou Model P40.17 EE MT 420 H MT-X 625 MT-X 732 MT-X 733 MT-X 1033 Operating weight (kg) 10580 - 4710 6945 6620 7525 Rated load capacity (kg) (with stabilizers down) 4000 2000 2500 3200 3300 3000 Max lift height (mm) (with stabilizers down) 16700 4300 5850 6900 6900 9640 Max fwd reach (mm) 12500 - 3940 3940 3900 7200 Load at max height (kg) 2500 - 2500 - 2500 1200 Load at max fwd reach (kg) 500 - 800 - 1100 120 Make Kubota Kubota Stage III A Kubota Stage III A Perkins Perkins 1104D- 44TNL38857 Perkins 1104D-44TA NM38858 Model Tier 3 engine V2607-DI-E3B V3307-DI-T-E3B Stage 3A 1104D-44TA 1104D-44TA Power (SAE J1349) (kW @ rpm) 74 49HP / 36kW 75HP / 55,4kW 95HP / 70kW 95 - 70 101 - 74,5 Height (mm) 2510 1900 1920 - 2500 2550 Width over tyres (mm) 2400 1490 1810 - 2250 2260 Wheelbase (mm) 2875 2130 2300 - 2690 2810 Turning radius (mm) (outside tyres) 4050 2980 3310 - 3760 3750 South African distributor Maximum Equipment & Plant Manitou SA Manitou SA Manitou SA Manitou SA Manitou SA Make Manitou Manitou Manitou Manitou Manitou Manitou Model MHT-X 10130 MHT-X 10180 MLT-X 625 MLT-X 735 MLT-X 840 MT-X 1440 Operating weight (kg) 18490 24490 4710 7250 8410 10550 Rated load capacity (kg) (with stabilizers down) 13000 18000 2500 3500 4000 3500 Max lift height (mm) (with stabilizers down) 9620 9600 5820 6860 7500 12740 Max fwd reach (mm) 5170 5500 4000 4000 5000 10000 Load at max height (kg) 10000 9500 2000 2500 2000 2000 Load at max fwd reach (kg) 3500 4500 800 1150 1450 80 Make Mercedes Mercedes Kubota V3307 Perkins John Deere Perkins Model OM 934 LA. E3A/1 OM 904 LA. E3A/1 V3307 1104D-E44TA 4045 PWX 1104D-44TA Power (SAE J1349) (kW @ rpm) 176HP / 129kW - 55 91 102 74,5 Height (mm) 2990 - 2054 2545 2559 2755 Width over tyres (mm) 2510 - 1813 2402 2392 2320 Wheelbase (mm) 3370 - 2300 2810 2880 2770 Turning radius (mm) (outside tyres) 5340 - 3310 3919 3744 4154 South African distributor Manitou SA Manitou SA Manitou SA Manitou SA Manitou SA Manitou SA Make Manitou Manitou Wacker Neuson Wacker Neuson XCMG XCMG Model MRT-X 2550 PRIV MHT-X 10230 1245T TH627 XT670-140 XT680-170 Operating weight (kg) 18900 29300 2700 5000 10500 13500 Rated load capacity (kg) (with stabilizers down) 4999 23000 1200 2700 - - Max lift height (mm) (with stabilizers down) 24700 9650 4300 5730 - - Max fwd reach (mm) 21400 5800 2290 3155 - - Load at max height (kg) 4500 12000 1200 1800 - - Load at max fwd reach (kg) 300 7000 440 800 - - Make Mercedes Stage 3A Mercedes Yanmar Kohler Deutz 70 / Perkins 74,5 82 Model OM 904 LA-E3A OM 904 LA. E3A/1 3TNV82A-BDWM KDI2504TCR - - Power (SAE J1349) (kW @ rpm) 150HP / 110kW 176HP / 129kW 22 @ 3000 55,4 @ 2600 - - Height (mm) 3005 3005 1940 1980 6290 6890 Width over tyres (mm) 2490 2850 1560 1960 2500 2500 Wheelbase (mm) - - 1920 2650 3250 3900 Turning radius (mm) (outside tyres) 4880 5400 2607 3670 - - South African distributor Manitou SA Manitou SA Wacker Neuson Wacker Neuson XCMG SA XCMG SA DECEMBER 2019 Telehandlers www.equipmentandhire.co.za
