OPTICAL PRODUCT
Supercontinuum LASERS

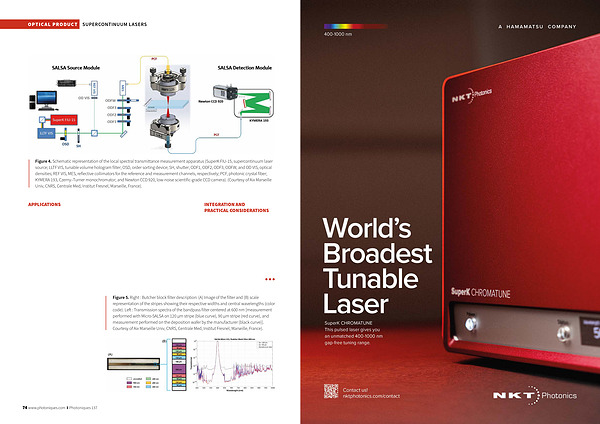

Figure 4. Schematic representation of the local spectral transmittance measurement apparatus( SuperK FIU-15, supercontinuum laser source; LLTF VIS, tunable volume hologram filter; OSD, order sorting device; SH, shutter; ODF1, ODF2, ODF3, ODFW, and OD VIS, optical densities; REF VIS, MES, reflective collimators for the reference and measurement channels, respectively; PCF, photonic crystal fiber; KYMERA 193, Czerny – Turner monochromator; and Newton CCD 920, low-noise scientific-grade CCD camera).( Courtesy of Aix Marseille Univ, CNRS, Centrale Med, Institut Fresnel, Marseille, France).
APPLICATIONS The combination of broadband emission and high brightness makes supercontinuum lasers highly attractive for a wide range of applications. Their use in Raman, fluorescence and absorption spectroscopy is now well established. In spectroscopy, they enable measurements at multiple wavelengths simultaneously, significantly reducing acquisition times and enabling comprehensive material characterization( see below Figure 4 and 5 illustrating a compact opto-mechanical setup developed for the precise characterization of optical filters with spatially varying spectral responses). In biomedical imaging, particularly in optical coherence tomography, the large spectral bandwidth of supercontinuum sources translates into high axial resolution, which is essential for detailed tissue imaging. In fluorescence microscopy, a single supercontinuum source can replace multiple discrete lasers when combined with tunable filters, simplifying experimental setups while expanding excitation capabilities. In metrology, femtosecond generated supercontinuum light is used to create
optical frequency combs, which enable extremely precise measurements of time and frequency. Industrial applications are also expanding rapidly and include machine vision, semiconductor metrology and inspection, and hyperspectral imaging, where broadband illumination improves contrast and defect detection. Environmental sensing represents another key domain, as SC sources allow simultaneous detection of multiple gas species across wide spectral bands.
INTEGRATION AND PRACTICAL CONSIDERATIONS The integration of supercontinuum lasers into experimental or industrial systems requires careful attention to engineering constraints. Fiber-coupled outputs are generally preferred due to stability and ease of alignment, although free-space configurations remain relevant for certain high-power or specialized applications. Thermal management and system footprints are
Figure 5. Right: Butcher block filter description:( A) Image of the filter and( B) scale representation of the stripes showing their respective widths and central wavelengths( color code). Left: Transmission spectra of the bandpass filter centered at 600 nm [ measurement performed with Micro-SALSA on 120 µ m stripe( blue curve), 90 µ m stripe( red curve), and measurement performed on the deposition wafer by the manufacturer( black curve)]. Courtesy of Aix Marseille Univ, CNRS, Centrale Med, Institut Fresnel, Marseille, France).
