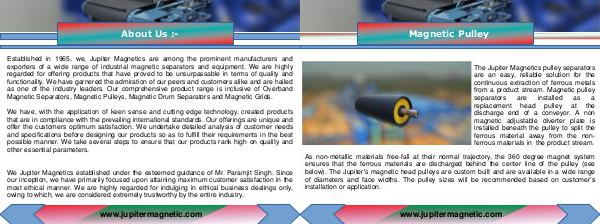

Magnetic Pulley
The Jupiter Magnetics pulley separators
are an easy, reliable solution for the
continuous extraction of ferrous metals
from a product stream. Magnetic pulley
separators
are
installed
as
a
replacement head pulley at the
discharge end of a conveyor. A non
magnetic adjustable diverter plate is
installed beneath the pulley to split the
ferrous material away from the non-
ferrous materials in the product stream.
As non-metallic materials free-fall at their normal trajectory, the 360 degree magnet system
ensures that the ferrous materials are discharged behind the center line of the pulley (see
below). The Jupiter's magnetic head pulleys are custom built and are available in a wide range
of diameters and face widths. The pulley sizes will be recommended based on customer’s
installation or application.
