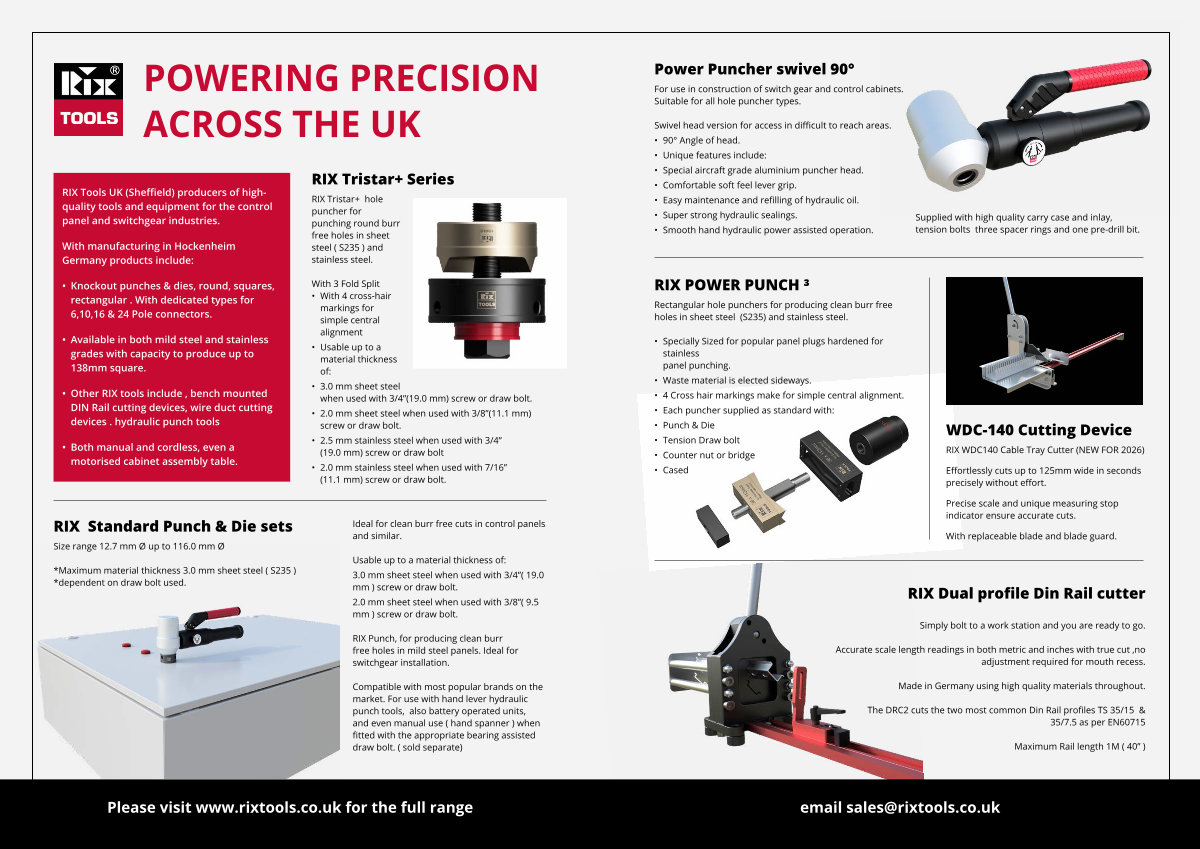

POWERING PRECISION ACROSS THE UK
RIX Tools UK( Sheffield) producers of highquality tools and equipment for the control panel and switchgear industries.
With manufacturing in Hockenheim Germany products include:
• Knockout punches & dies, round, squares, rectangular. With dedicated types for 6,10,16 & 24 Pole connectors.
• Available in both mild steel and stainless grades with capacity to produce up to 138mm square.
• Other RIX tools include, bench mounted DIN Rail cutting devices, wire duct cutting devices. hydraulic punch tools
• Both manual and cordless, even a motorised cabinet assembly table.
RIX Tristar + Series
RIX Tristar + hole puncher for punching round burr free holes in sheet steel( S235) and stainless steel.
With 3 Fold Split
• With 4 cross-hair markings for simple central alignment
• Usable up to a material thickness of:
• 3.0 mm sheet steel when used with 3 / 4”( 19.0 mm) screw or draw bolt.
• 2.0 mm sheet steel when used with 3 / 8”( 11.1 mm) screw or draw bolt.
• 2.5 mm stainless steel when used with 3 / 4”( 19.0 mm) screw or draw bolt
• 2.0 mm stainless steel when used with 7 / 16”( 11.1 mm) screw or draw bolt.
RIX Standard Punch & Die sets
Size range 12.7 mm Ø up to 116.0 mm Ø
* Maximum material thickness 3.0 mm sheet steel( S235) * dependent on draw bolt used.
Ideal for clean burr free cuts in control panels and similar.
Usable up to a material thickness of: 3.0 mm sheet steel when used with 3 / 4”( 19.0 mm) screw or draw bolt. 2.0 mm sheet steel when used with 3 / 8”( 9.5 mm) screw or draw bolt.
RIX Punch, for producing clean burr free holes in mild steel panels. Ideal for switchgear installation.
Compatible with most popular brands on the market. For use with hand lever hydraulic punch tools, also battery operated units, and even manual use( hand spanner) when fitted with the appropriate bearing assisted draw bolt.( sold separate)
Please visit www. rixtools. co. uk for the full range
