ADAPTTECH mk strengthens their conveyor offering
MACHINING & MACHINERY COMPACT. CUSTOM. CAPABLE
ADAPTTECH mk strengthens their conveyor offering
The mk Technology Group have enhanced their market leading conveyor offering with a relaunch of its best-selling GUF-P mini small belt conveyor and the additional of a new high performance curved belt conveyor.

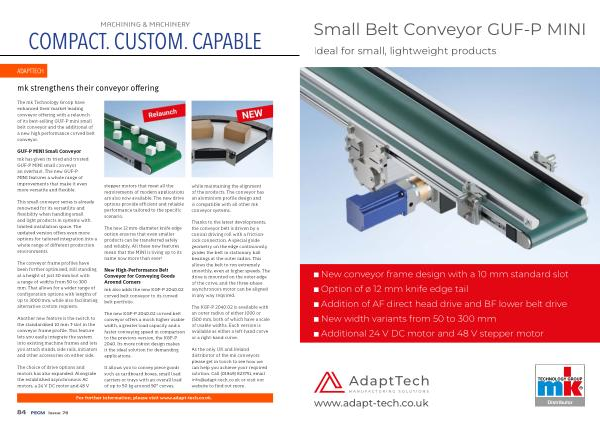

GUF-P MINI Small Conveyor
mk has given its tried and trusted GUF-P MINI small conveyor an overhaul. The new GUF-P MINI features a whole range of improvements that make it even more versatile and flexible.
This small conveyor series is already renowned for its versatility and flexibility when handling small and light products in systems with limited installation space. The updated version offers even more options for tailored integration into a whole range of different production environments.
The conveyor frame profiles have been further optimised, still standing at a height of just 30 mm but with a range of widths from 50 to 300 mm. That allows for a wider range of configuration options with lengths of up to 3000 mm, while also facilitating alternative custom requests.
Another new feature is the switch to the standardised 10 mm T-slot in the conveyor frame profile. This feature lets you easily integrate the system into existing machine frames and lets you attach stands, side rails, initiators and other accessories on either side.
The choice of drive options and motors has also expanded. Alongside the established asynchronous AC motors, a 24 V DC motor and 48 V
stepper motors that meet all the requirements of modern applications are also now available. The new drive options provide efficient and reliable performance tailored to the specific scenario.
The new 12 mm-diameter knife edge option ensures that even smaller products can be transferred safely and reliably. All these new features mean that the MINI is living up to its name now more than ever!
New High-Performance Belt Conveyor for Conveying Goods Around Corners
mk also adds the new KGF-P 2040.02 curved belt conveyor to its curved belt portfolio.
The new KGF-P 2040.02 curved belt conveyor offers a much higher usable width, a greater load capacity and a faster conveying speed in comparison to the previous version, the KGF-P 2040. Its more robust design makes it the ideal solution for demanding applications.
It allows you to convey piece goods such as cardboard boxes, small load carriers or trays with an overall load of up to 50 kg around 90 ° curves,
while maintaining the alignment of the products. The conveyor has an aluminium profile design and is compatible with all other mk conveyor systems.
Thanks to the latest developments, the conveyor belt is driven by a conical driving roll with a frictionlock connection. A special guide geometry on the edge continuously guides the belt in stationary ball bearings at the outer radius. This allows the belt to run extremely smoothly, even at higher speeds. The drive is mounted on the outer edge of the curve, and the three-phase asynchronous motor can be aligned in any way required.
The KGF-P 2040.02 is available with an outer radius of either 1000 or 1500 mm, both of which have a scale of usable widths. Each version is available as either a left-hand curve or a right-hand curve.
As the only UK and Ireland distributor of the mk conveyors please get in touch to see how we can help you achieve your required solution. Call( 01949) 823751, email info @ adapt-tech. co. uk or visit our website to find out more.
For further information, please visit www. adapt-tech. co. uk.
