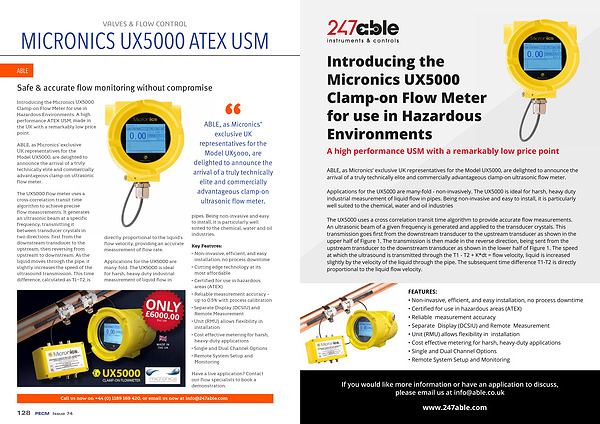

Introducing the Micronics UX5000 Clamp-on Flow Meter for use in Hazardous Environments
A high performance USM with a remarkably low price point
ABLE, as Micronics’ exclusive UK representatives for the Model UX5000, are delighted to announce the arrival of a truly technically elite and commercially advantageous clamp-on ultrasonic flow meter.
Applications for the UX5000 are many-fold- non-invasively. The UX5000 is ideal for harsh, heavy duty industrial measurement of liquid flow in pipes. Being non-invasive and easy to install, it is particularly well suited to the chemical, water and oil industries
The UX5000 uses a cross correlation transit time algorithm to provide accurate flow measurements. An ultrasonic beam of a given frequency is generated and applied to the transducer crystals. This transmission goes first from the downstream transducer to the upstream transducer as shown in the upper half of Figure 1. The transmission is then made in the reverse direction, being sent from the upstream transducer to the downstream transducer as shown in the lower half of Figure 1. The speed at which the ultrasound is transmitted through the T1- T2 + K * dt = flow velocity, liquid is increased slightly by the velocity of the liquid through the pipe. The subsequent time difference T1-T2 is directly proportional to the liquid flow velocity.
FEATURES:
• Non-invasive, efficient, and easy installation, no process downtime
• Certified for use in hazardous areas( ATEX)
• Reliable measurement accuracy
• Separate Display( DCSIU) and Remote Measurement
• Unit( RMU) allows flexibility in installation
• Cost effective metering for harsh, heavy-duty applications
• Single and Dual Channel Options
• Remote System Setup and Monitoring
If you would like more information or have an application to discuss, please email us at info @ able. co. uk
www. 247able. com
