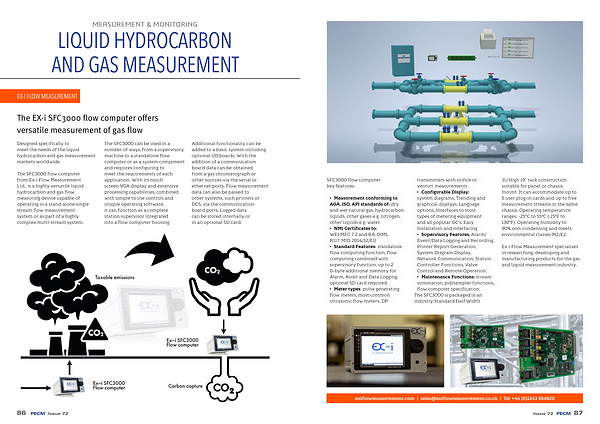

SFC3000 flow computer key features :
• Measurement conforming to AGA , ISO , API standards of : dry and wet natural gas , hydrocarbon liquids , other gases e . g . nitrogen , other liquids e . g . water .
• NMi Certificates to : WELMEC 7.2 and 8.8 , OIML R117 , MID 2014 / 32 / EU
• Standard Features : standalone flow computing function , flow computing combined with supervisory function , up to 2 G-byte additional memory for Alarm , Audit and Data Logging , optional SD card required .
• Meter types : pulse generating flow meters , most common ultrasonic flow meters , DP
transmitters with orifice or venturi measurements
• Configurable Display : system diagrams , Trending and graphical displays , Language options , Interfaces to most types of metering equipment and all popular GC ’ s , Easy Installation and interfacing
• Supervisory Features , Alarm / Event / Data Logging and Recording , Printer Report Generation , System Diagram Display , Network Communication , Station Controller Functions , Valve Control and Remote Operation .
• Maintenance Functions : stream summation , pid / sampler functions , flow computer specification . The SFC3000 is packaged in an industry Standard Half Width
3U High 19 ” rack construction suitable for panel or chassis mount . It can accommodate up to 6 user plug-in cards and up to five measurement streams in the same chassis . Operating temperature ranges ; -25 ° C to 55 ° C ( -15 ° F to 130 ° F ). Operating humidity to 90 % non-condensing and meets environmental classes M2 / E2 .
Ex-i Flow Measurement specialises in researching , developing and manufacturing products for the gas and liquid measurement industry .
exiflowmeasurement . com | sales @ exiflowmeasurement . co . uk | Tel + 44 ( 0 ) 1243 554920
