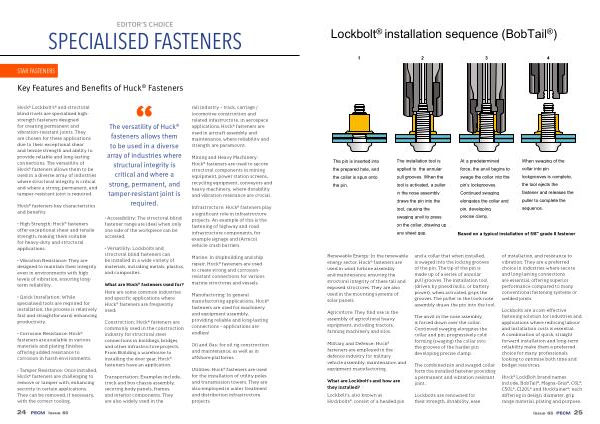

Lockbolt ® installation sequence ( BobTail ® )
1 2 3 4
The pin is inserted into the prepared hole , and the collar is spun onto the pin .
The installation tool is applied to the annular pull grooves . When the tool is activated , a puller in the nose assembly draws the pin into the tool , causing the swaging anvil to press on the collar , drawing up any sheet gap .
At a predetermined When swaging of the force , the anvil begins to collar into pin swage the collar into the lockgrooves is complete , pin ’ s lockgrooves . the tool ejects the Continued swaging fastener and releases the elongates the collar and puller to complete the pin , developing sequence . precise * clamp .
Based on a typical installation of 5 / 8 " grade 8 fastener
Renewable Energy : In the renewable energy sector , Huck ® fasteners are used in wind turbine assembly and maintenance , ensuring the structural integrity of these tall and exposed structures . They are also used in the mounting systems of solar panels .
Agriculture : They find use in the assembly of agricultural heavy equipment , including tractors , farming machinery and silos .
Military and Defence : Huck ® fasteners are employed in the defence industry for military vehicle assembly , maintenance , and equipment manufacturing .
What are Lockbolt ’ s and how are they installed ?
Lockbolt ’ s , also known as Huckbolts ® , consist of a headed pin and a collar that when installed , is swaged into the locking grooves of the pin . The tip of the pin is made up of a series of annular pull grooves . The installation tool ( driven by pneudraulic , or battery power ), when activated , grips the grooves . The puller in the tools nose assembly draws the pin into the tool .
The anvil in the nose assembly is forced down over the collar . Continued swaging elongates the collar and pin , progressively cold forming ( swaging ) the collar into the grooves of the harder pin developing precise clamp .
The combined pin and swaged collar form the installed fastener providing a permanent and vibration resistant joint .
Lockbolts are renowned for their strength , durability , ease of installation , and resistance to vibration . They are a preferred choice in industries where secure and long-lasting connections are essential , offering superior performance compared to many conventional fastening systems or welded joints .
Lockbolts are a cost-effective fastening solution for industries and applications where reducing labour and installation costs is essential . A combination of quick , straight forward installation and long-term reliability make them a preferred choice for many professionals looking to optimise both time and budget resources .
Huck ® LockBolt brand names include , BobTail ® , Magna-Grip ® , C6L ® , C50L ® , C120L ® and Hucktainer ® ; each differing in design , diameter , grip range material , plating and purpose .
