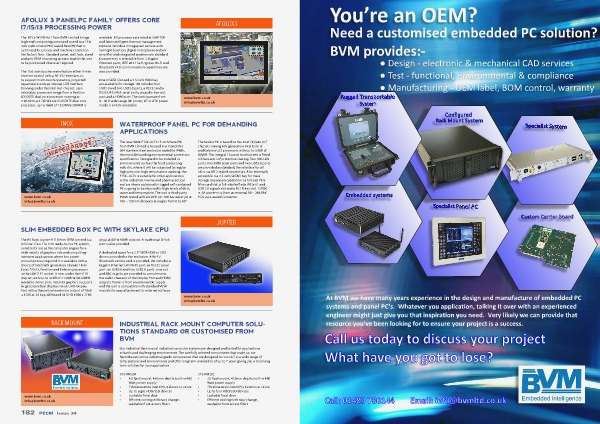

AFOLUX 3 PANELPC FAMILY OFFERS CORE I7 / I5 / I3 PROCESSING POWER
AFOLUX3
The AFL3-W15B-H81 from BVM Limited brings high-end computing power and speed to a 15.6 inch wide screen IP64 sealed PanelPC that is optimised for process and machine control on the factory floor. Standard panel, wall, rack, stand and arm VESA mounting options enable the unit to be positioned wherever required.
The 15.6 inch touchscreens feature either 5-wire resistive control with a RS-232 interface, or, to support multi-touch operation, projected capacitance with an internal USB interface. Running under the Intel H81 chipset, userselectable processors range from a Pentium G3320TE dual core processor running at 2.3GHz to a 2.7GHz Core i5-4570TE dual core processor; up to 16GB of 1333MHz SDRAM is available. All processors are rated at 35W TDP and have intelligent thermal management. Options include a 2 megapixel camera with low light function, digital microphone and an amplifier and integrated speakers are standard. Connectivity is selectable from 2 Gigabit Ethernet ports, IEEE 802.11a / b / g / n / ac Wi-Fi and Bluetooth v4.0 communication capabilities are also provided.
One mSATA Slot and a 2.5 inch HDD bay are available for storage. I / O includes four USB2.0 and two USB3.0 ports, a RS232 and a RS232 / 422 / 485 serial ports, an audio line-out port and a HDMI port. The units operate from 9- 30 V wide range DC power; AT or ATX power mode is switch selectable.
www. bvm. co. uk info @ bvmltd. co. uk
INOX
WATERPROOF PANEL PC FOR DEMANDING APPLICATIONS www. bvm. co. uk info @ bvmltd. co. uk
The new INOX-F15C-ULT3 15 inch Panel PC from BVM Limited is housed in a monolithic 304 stainless steel enclosure sealed to IP69k, the most demanding environmental protection specification. Designed to be installed in environments such as the food processing industry, where it will be subjected to regular high pressure, high temperature washing, the F15C – ULT3 is suitable for other applications in the industrial, marine and pharmaceutical sectors where a physically rugged self-contained PC is going to be exposed to high levels of dust, water and temperature. The unit is third-party IP69K tested with an 80 ° C 80-100 bar water jet at 100 – 150mm distance at angles from 0 to 90 °.
The fanless PC is based on the Intel Skylake ULT chipset running 6th generation Intel Core i5 and Celeron ULT processors with up to 32GB of DRAM. The integral 10 point touchscreen is fitted with an anti-UV protective coating. Two 10G LAN ports, two COM serial ports and two USB2.0 ports are provided as standard; the interface for all I / O is via M12 sealed connectors. Also externally accessible is a 2.5 inch SATAIII bay for mass storage. Expansion capability is a full-size PCIe Mini card slot, a full-size / half-size( PCIe x1 and USB 2.0 signals slot and a M. 2 B-key slot. 12VDC @ 5A power-in is from an external 90 – 264 VAC PSU via a sealed connector.
SLIM EMBEDDED BOX PC WITH SKYLAKE CPU
JUPITER
The AS Rock Jupiter-H110 from BVM Limited is a slimline 178 x 178 x 34 ready-to-run PC system, suitable for use as the computer engine for a wide variety of graphics rich and computingintensive applications where low power consumption is required. It is available with a choice of Intel’ s 6th generation Skylake 14nm Core i7 / i5 / i3, Pentium and Celeron processors in the LGA1151 socket. It runs under the H110 chipset, with up to 32GB of 2133MHz SO-DIMM available in two slots. Intel HD graphics supports large screen dual displays via 8k UHD Display Port with a theoretical maximum output of 7680 × 4320 at 24 bpp, 60Hz and 4k UHD 4096 x 2160
8bpp at 60Hz HDMI outputs. A traditional D-Sub port is also provided.
A dedicated space for a 2.5” SATA HDD or SSD drive is provided in the enclosure. A Wi-Fi / Bluetooth combo card is provided; I / O includes a Gigabit Ethernet LAN RJ45 port, an RS232 serial port, six USB3.0 and two USB2.0 ports. Line out and MIC in jacks are provided to complement the audio channels of the Display Port and HDMI outputs. Power is from an external DC supply and the unit is compatible with standard VESA mounts for easy attachment to external surfaces. www. bvm. co. uk info @ bvmltd. co. uk
RACK MOUNT
INDUSTRIAL RACK MOUNT COMPUTER SOLU- TIONS STANDARD OR CUSTOMISED FROM BVM
Our Industrial Rack mount industrial computer systems are designed and tested for applications in harsh and challenging environments. The carefully selected components that make up our Rack Mounts utilise industrial grade components that are designed to run 24 / 7 in a wide range of temperatures and environments and offer long term availability of up to 7 years giving you a truly long term solution for your application. www. bvm. co. uk info @ bvmltd. co. uk
182 PECM Issue 34
SYS-RM204
• 4U Rack mount, 480mm depth, built-in 460 Watt power supply
• 7th Generation Intel CPU, Celeron or i-Core
• Up to eight HDD / SSD devices
• Lockable front door
• Efficient cooling with easy change, washable front access filters
SYS-RM202
• 2U Rack mount, 420mm depth, built-in 460 Watt power supply
• 7th Generation Intel CPU, Celeron or i-Core
• Up to four HDD / SSD devices
• Lockable front door
• Efficient cooling with easy change, washable front access filters
