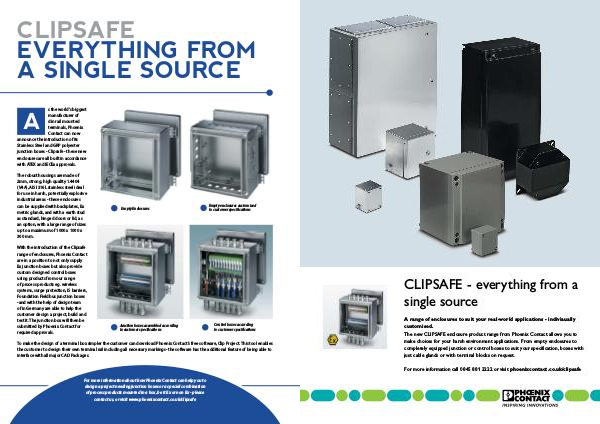

CLIPSAFE
EVERYTHING FROM
A SINGLE SOURCE
s the world’s biggest
manufacturer of
din rail mounted
terminals, Phoenix
Contact can now
announce the introduction of its
Stainless Steel and GRP polyester
junction boxes - Clipsafe - these new
enclosures are all built in accordance
with ATEX and IECEx approvals.
A
The robust housings are made of
2mm, strong, high quality 1.4404
(V4A), AISI 316L stainless steel ideal
for use in harsh, potentially explosive
industrial areas - these enclosures
can be supplied with backplates, Ex
metric glands, and with a earth stud
as standard, hinged doors or lid, as
an option, with a large range of sizes
up to a maximum of 1000 x 1000 x
300 mm.
With the introduction of the Clipsafe
range of enclosures, Phoenix Contact
are in a position to not only supply
Ex junction boxes but also provide
custom designed control boxes
using products from our range
of process products eg. wireless
systems, surge protection, IS barriers,
Foundation Fieldbus junction boxes
-and with the help of design team
of in Germany are able to help the
customer design a project, build and
test it. The junction box will then be
submitted by Phoenix Contact for
required approvals.
Empty Enclosures
Junction boxes assembled according
to customer specifications
Empty enclosures customised
to customer specifications
Control boxes according
to customer specifications
To make the design of a terminal box simpler the customer can download Phoenix Contact’s free software, Clip Project. This tool enables
the customer to design their own terminal rail including all necessary markings- the software has the additional feature of being able to
interface with all major CAD Packages.
For more information about how Phoenix Contact can help you to
design a project needing junction boxes or a special combination
of process products mounted in a box, be it Ex or non Ex - please
contact us, or visit www.phoenixcontact.co.uk/clipsafe
