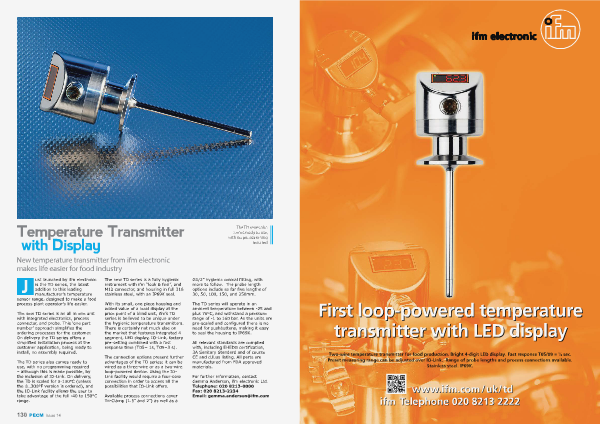

Temperature Transmitter
with Display
The TD series also
comes ready to use,
with no programming
required
New temperature transmitter from ifm electronic
makes life easier for food industry
J
ust launched by ifm electronic
is the TD series, the latest
addition to this leading
manufacturer’s temperature
sensor range, designed to make a food
process plant operator’s life easier.
The new TD series is an all in one unit
with integrated electronics, process
connector, and probe. This ‘one part
number’ approach simplifies the
ordering processes for the customer.
On delivery the TD series offers a
simplified installation process at the
customer application, being ready to
install, no assembly required.
The TD series also comes ready to
use, with no programming required
– although this is made possible, by
the inclusion of IO-Link. On delivery,
the TD is scaled for 0-100°C (unless
the 0…300°F version is ordered), and
the IO-Link facility allows the user to
take advantage of the full -40 to 150°C
range.
130
PECM Issue 14
The new TD series is a fully hygienic
instrument with ifm “look & feel”, and
M12 connector, and housing in full 316
stainless steel, with an IP69K seal.
G1/2” hygienic conical fitting, with
more to follow. The probe length
options include so far five lengths of
30, 50, 100, 150, and 250mm.
With its small, one piece housing and
added value of a local display at the
price point of a blind unit, ifm’s TD
series is believed to be unique under
the hygienic temperature transmitters.
There is certainly not much else on
the mark WBF
