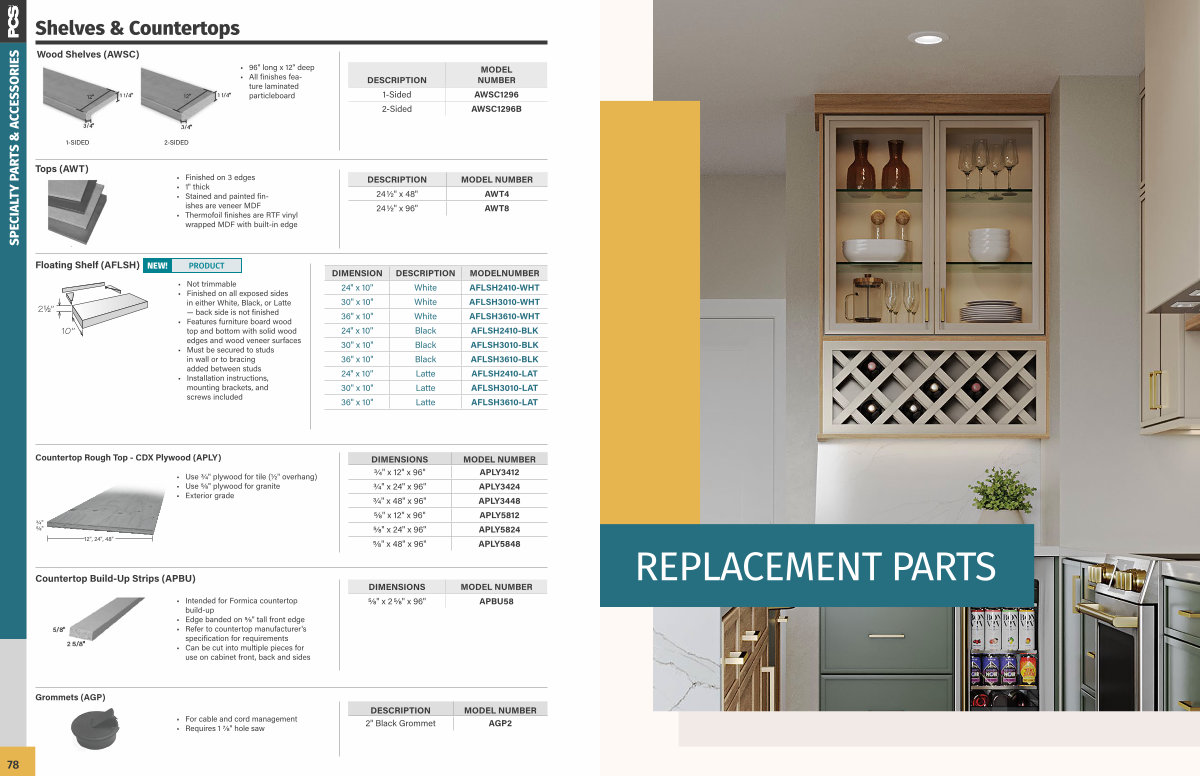

Shelves & Countertops

SPECIALTY PARTS & ACCESSORIES
Wood Shelves( AWSC)
1-SIDED
Tops( AWT)
2-SIDED
• 96 " long x 12 " deep
• All finishes feature laminated particleboard
• Finished on 3 edges
• 1 " thick
• Stained and painted finishes are veneer MDF
• Thermofoil finishes are RTF vinyl wrapped MDF with built-in edge
DESCRIPTION
1-Sided
2-Sided
DESCRIPTION
MODEL NUMBER
AWSC1296
AWSC1296B
MODEL NUMBER
24 1 / 2 " x 48 " AWT4
24 1 / 2 " x 96 " AWT8
Floating Shelf( AFLSH)
NEW!
PRODUCT
• Not trimmable
• Finished on all exposed sides in either White, Black, or Latte— back side is not finished
• Features furniture board wood top and bottom with solid wood edges and wood veneer surfaces
• Must be secured to studs in wall or to bracing added between studs
• Installation instructions, mounting brackets, and screws included
DIMENSION
DESCRIPTION
MODELNUMBER
24 " x 10 "
White
AFLSH2410-WHT
30 " x 10 "
White
AFLSH3010-WHT
36 " x 10 "
White
AFLSH3610-WHT
24 " x 10 "
Black
AFLSH2410-BLK
30 " x 10 "
Black
AFLSH3010-BLK
36 " x 10 "
Black
AFLSH3610-BLK
24 " x 10 "
Latte
AFLSH2410-LAT
30 " x 10 "
Latte
AFLSH3010-LAT
36 " x 10 "
Latte
AFLSH3610-LAT
Countertop Rough Top- CDX Plywood( APLY)
3 / 4 " 5 / 8 "
12 ", 24 ", 48 "
• Use 3 / 4 " plywood for tile( 1 / 2 " overhang)
• Use 5 / 8 " plywood for granite
• Exterior grade
DIMENSIONS
MODEL NUMBER
3 / 4 " x 12 " x 96 "
APLY3412
3 / 4 " x 24 " x 96 " APLY3424 3 / 4 " x 48 " x 96 " APLY3448 5 / 8 " x 12 " x 96 " APLY5812 5 / 8 " x 24 " x 96 " APLY5824 5 / 8 " x 48 " x 96 " APLY5848
Countertop Build-Up Strips( APBU)
• Intended for Formica countertop build-up
• Edge banded on 5 / 8 " tall front edge
• Refer to countertop manufacturer ' s specification for requirements
• Can be cut into multiple pieces for use on cabinet front, back and sides
DIMENSIONS
MODEL NUMBER 5 / 8 " x 2 5 / 8 " x 96 " APBU58
Grommets( AGP)
• For cable and cord management
• Requires 1 7 / 8 " hole saw
DESCRIPTION
MODEL NUMBER
2 " Black Grommet
AGP2
