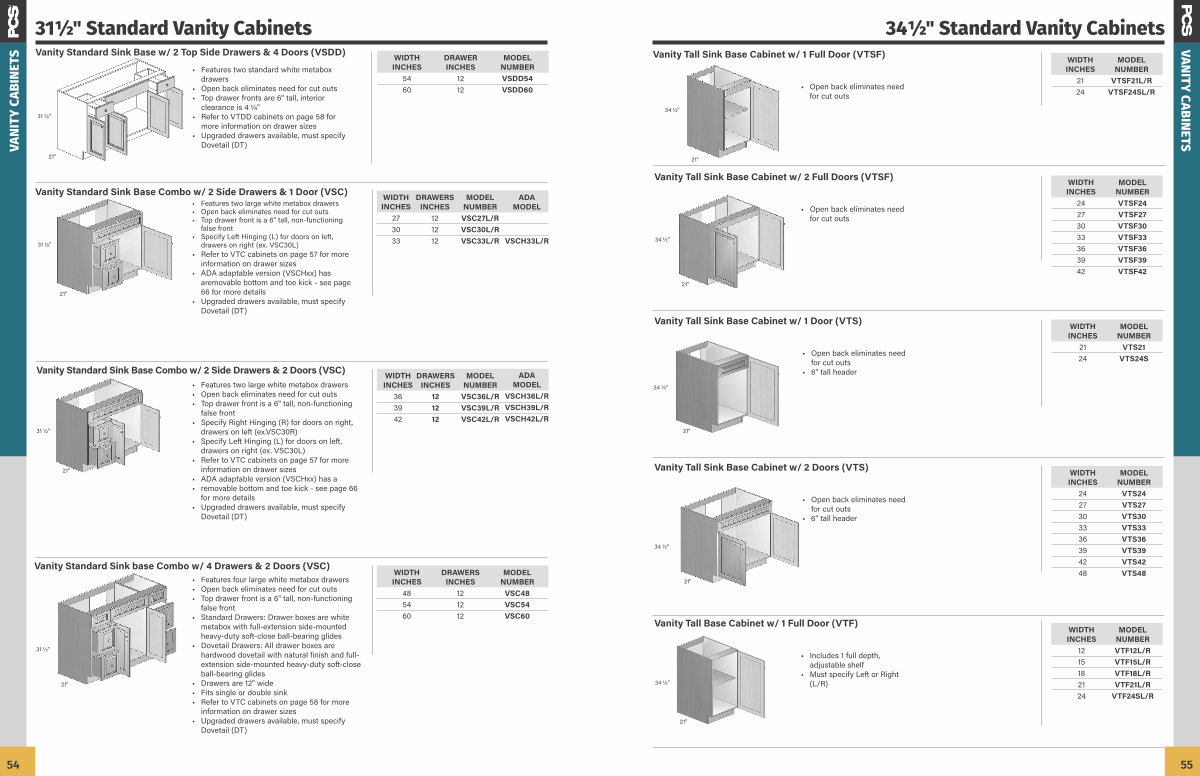

PCS Specification Guide | Page 54

311 / 2 " Standard Vanity Cabinets
VANITY CABINETS
Vanity Standard Sink Base w / 2 Top Side Drawers & 4 Doors( VSDD)
31 1 / 2 "
• Features two standard white metabox drawers
• Open back eliminates need for cut outs
• Top drawer fronts are 6 " tall, interior clearance is 4 1 / 4 "
• Refer to VTDD cabinets on page 58 for more information on drawer sizes
• Upgraded drawers available, must specify Dovetail( DT)
WIDTH INCHES
54 60
DRAWER INCHES
12 12
MODEL NUMBER
VSDD54 VSDD60
21 "
Vanity Standard Sink Base Combo w / 2 Side Drawers & 1 Door( VSC)
• Features two large white metabox drawers
• Open back eliminates need for cut outs
• Top drawer front is a 6 " tall, non-functioning false front
• Specify Left Hinging( L) for doors on left,
31 1 / 2 " drawers on right( ex. VSC30L)
• Refer to VTC cabinets on page 57 for more information on drawer sizes
• ADA adaptable version( VSCHxx) has aremovable bottom and toe kick- see page
21 "
66 for more details
• Upgraded drawers available, must specify Dovetail( DT)
WIDTH INCHES
27 30 33
DRAWERS INCHES
12 12 12
MODEL NUMBER
VSC27L / R VSC30L / R VSC33L / R
ADA MODEL
VSCH33L / R
Vanity Standard Sink Base Combo w / 2 Side Drawers & 2 Doors( VSC)
31 1 / 2 "
21 "
• Features two large white metabox drawers
• Open back eliminates need for cut outs
• Top drawer front is a 6 " tall, non-functioning false front
• Specify Right Hinging( R) for doors on right, drawers on left( ex. VSC30R)
• Specify Left Hinging( L) for doors on left, drawers on right( ex. VSC30L)
• Refer to VTC cabinets on page 57 for more information on drawer sizes
• ADA adaptable version( VSCHxx) has a
• removable bottom and toe kick- see page 66 for more details
• Upgraded drawers available, must specify Dovetail( DT)
WIDTH INCHES
36 39 42
DRAWERS INCHES
12 12 12
MODEL NUMBER
VSC36L / R VSC39L / R VSC42L / R
ADA MODEL
VSCH36L / R VSCH39L / R VSCH42L / R
Vanity Standard Sink base Combo w / 4 Drawers & 2 Doors( VSC)
31 1 / 2 "
21 "
• Features four large white metabox drawers
• Open back eliminates need for cut outs
• Top drawer front is a 6 " tall, non-functioning false front
• Standard Drawers: Drawer boxes are white metabox with full-extension side-mounted heavy-duty soft-close ball-bearing glides
• Dovetail Drawers: All drawer boxes are hardwood dovetail with natural finish and fullextension side-mounted heavy-duty soft-close ball-bearing glides
• Drawers are 12 " wide
• Fits single or double sink
• Refer to VTC cabinets on page 58 for more information on drawer sizes
• Upgraded drawers available, must specify Dovetail( DT)
WIDTH INCHES
48 54 60
DRAWERS INCHES
12 12 12
MODEL NUMBER
VSC48 VSC54 VSC60
54
