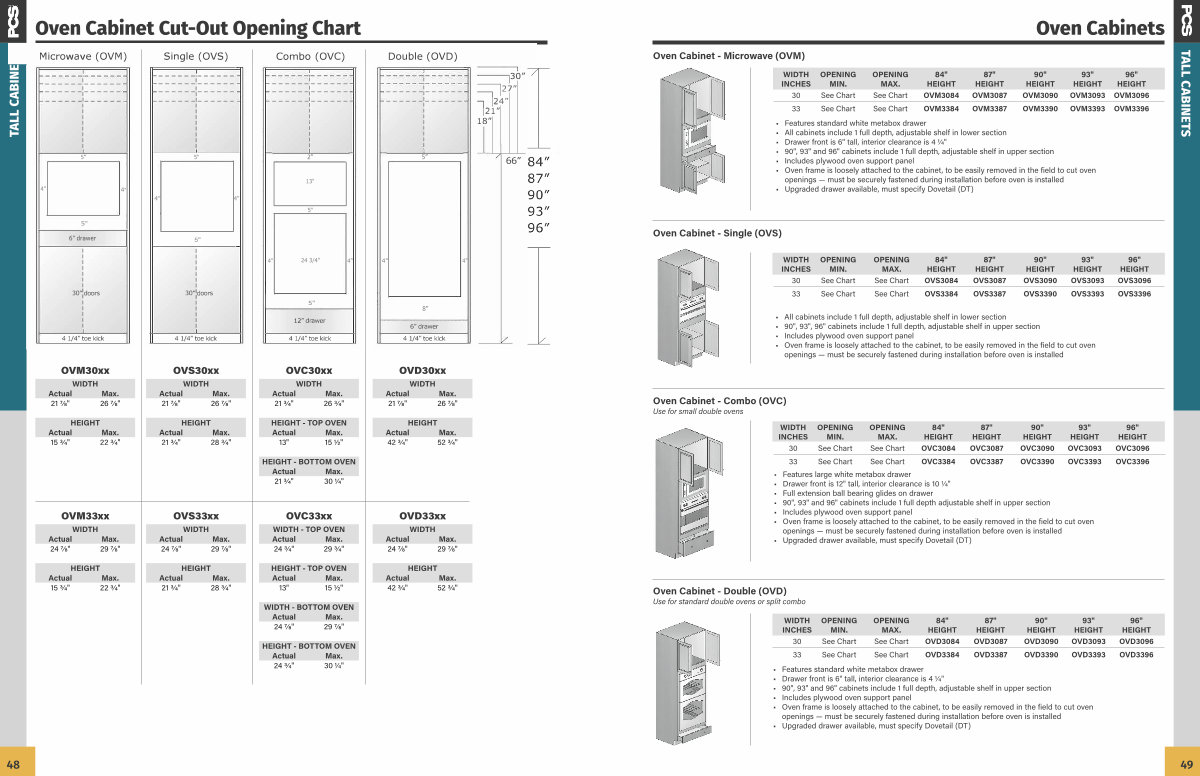

Oven Cabinets
Oven Cabinet- Microwave( OVM)
WIDTH INCHES
30 33
OPENING MIN.
See Chart See Chart
OPENING MAX.
See Chart See Chart
84 " HEIGHT
OVM3084 OVM3384
87 " HEIGHT
OVM3087 OVM3387
90 " HEIGHT
OVM3090 OVM3390
93 " HEIGHT
OVM3093 OVM3393
• Features standard white metabox drawer
• All cabinets include 1 full depth, adjustable shelf in lower section
• Drawer front is 6 " tall, interior clearance is 4 1 / 4 "
• 90 ", 93 " and 96 " cabinets include 1 full depth, adjustable shelf in upper section
• Includes plywood oven support panel
• Oven frame is loosely attached to the cabinet, to be easily removed in the field to cut oven openings— must be securely fastened during installation before oven is installed
• Upgraded drawer available, must specify Dovetail( DT)
96 " HEIGHT
OVM3096 OVM3396
TALL CABINETS
Oven Cabinet- Single( OVS)
|
WIDTH INCHES
30
|
OPENING MIN.
See Chart
|
OPENING MAX.
See Chart
|
84 " HEIGHT
OVS3084
|
87 " HEIGHT
OVS3087
|
90 " HEIGHT
OVS3090
|
93 " HEIGHT
OVS3093
|
96 " HEIGHT
OVS3096
|
33 |
See Chart |
See Chart |
OVS3384 |
OVS3387 |
OVS3390 |
OVS3393 |
OVS3396 |
• All cabinets include 1 full depth, adjustable shelf in lower section
• 90 ", 93 ", 96 " cabinets include 1 full depth, adjustable shelf in upper section
• Includes plywood oven support panel
• Oven frame is loosely attached to the cabinet, to be easily removed in the field to cut oven openings— must be securely fastened during installation before oven is installed
Oven Cabinet- Combo( OVC)
Use for small double ovens
WIDTH INCHES
30 33
OPENING MIN.
See Chart See Chart
OPENING MAX.
See Chart See Chart
84 " HEIGHT
OVC3084 OVC3384
87 " HEIGHT
OVC3087 OVC3387
90 " HEIGHT
OVC3090 OVC3390
93 " HEIGHT
OVC3093 OVC3393
• Features large white metabox drawer
• Drawer front is 12 " tall, interior clearance is 10 1 / 4 "
• Full extension ball bearing glides on drawer
• 90 ", 93 " and 96 " cabinets include 1 full depth adjustable shelf in upper section
• Includes plywood oven support panel
• Oven frame is loosely attached to the cabinet, to be easily removed in the field to cut oven openings— must be securely fastened during installation before oven is installed
• Upgraded drawer available, must specify Dovetail( DT)
96 " HEIGHT
OVC3096 OVC3396
Oven Cabinet- Double( OVD)
Use for standard double ovens or split combo
WIDTH INCHES
30 33
OPENING MIN.
See Chart See Chart
OPENING MAX.
See Chart See Chart
84 " HEIGHT
OVD3084 OVD3384
87 " HEIGHT
OVD3087 OVD3387
90 " HEIGHT
OVD3090 OVD3390
93 " HEIGHT
OVD3093 OVD3393
• Features standard white metabox drawer
• Drawer front is 6 " tall, interior clearance is 4 1 / 4 "
• 90 ", 93 " and 96 " cabinets include 1 full depth, adjustable shelf in upper section
• Includes plywood oven support panel
• Oven frame is loosely attached to the cabinet, to be easily removed in the field to cut oven openings— must be securely fastened during installation before oven is installed
• Upgraded drawer available, must specify Dovetail( DT)
96 " HEIGHT
OVD3096 OVD3396
49
