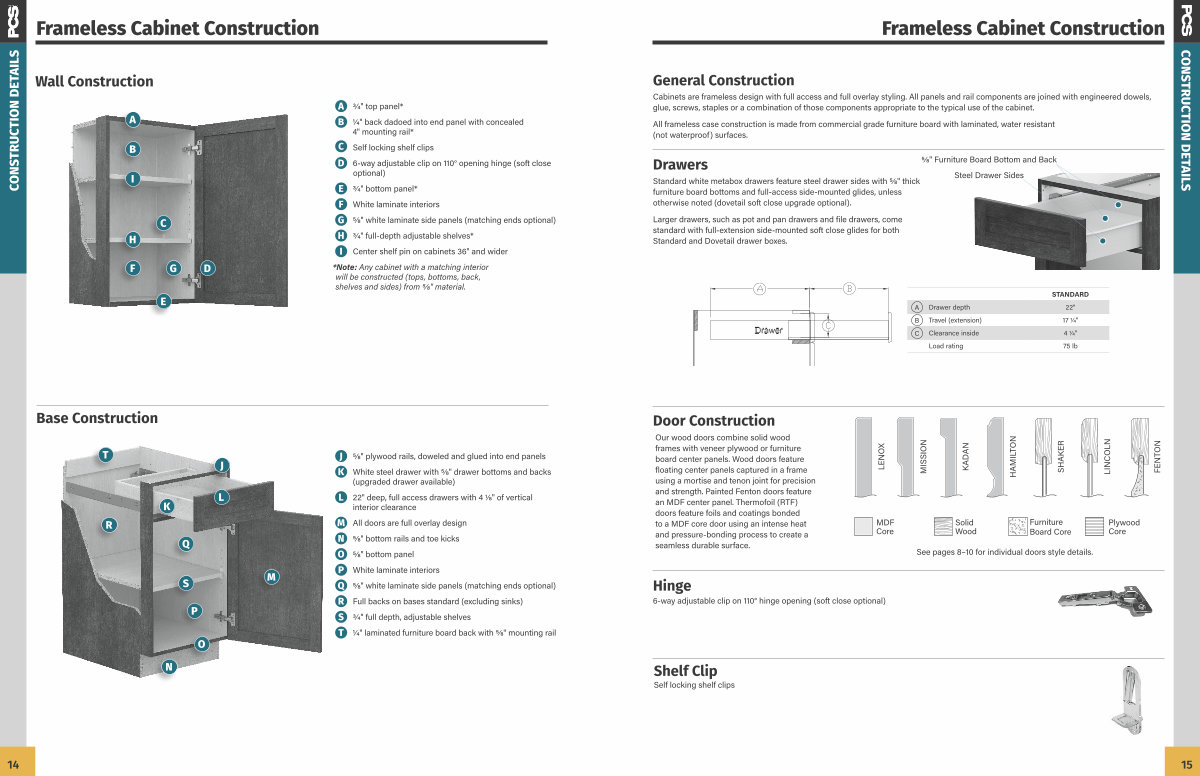

PCS Specification Guide | Page 14

Frameless Cabinet Construction

CONSTRUCTION DETAILS
Wall Construction
A
B
I
A 3 / 4 " top panel *
B 1 / 4 " back dadoed into end panel with concealed 4 " mounting rail *
C Self locking shelf clips
D 6-way adjustable clip on 110 ° opening hinge( soft close optional)
E 3 / 4 " bottom panel *
F White laminate interiors
H
C
G 5 / 8 " white laminate side panels( matching ends optional)
H 3 / 4 " full-depth adjustable shelves *
I Center shelf pin on cabinets 36 " and wider
F
E
G
D
* Note: Any cabinet with a matching interior will be constructed( tops, bottoms, back, shelves and sides) from 5 / 8 " material.
Base Construction
T
K
J
L
J 5 / 8 " plywood rails, doweled and glued into end panels
K White steel drawer with 5 / 8 " drawer bottoms and backs( upgraded drawer available)
L 22 " deep, full access drawers with 4 1 / 8 " of vertical interior clearance
R
Q
M All doors are full overlay design
N 5 / 8 " bottom rails and toe kicks
O 5 / 8 " bottom panel
S
M
P White laminate interiors
Q 5 / 8 " white laminate side panels( matching ends optional)
P
R Full backs on bases standard( excluding sinks)
S 3 / 4 " full depth, adjustable shelves
O
T 1 / 4 " laminated furniture board back with 5 / 8 " mounting rail
N
