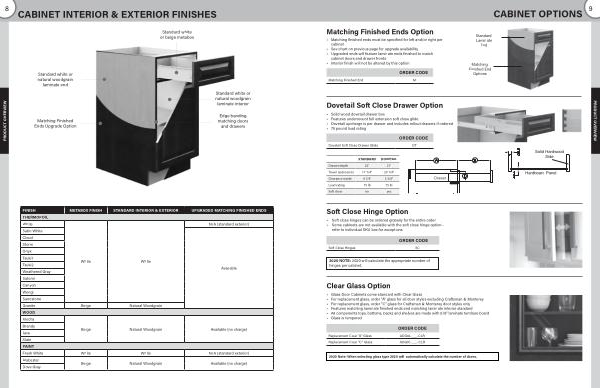

CABINET OPTIONS
9
Matching Finished Ends Option
• Matching finished ends must be specified for left and / or right per cabinet
• See chart on previous page for upgrade availability
• Upgraded ends will feature laminate ends finished to match cabinet doors and drawer fronts
• Interior finish will not be altered by this option
Matching Finished End
ORDER CODE M
Standard Laminate End
Matching Finished End Options
Dovetail Soft Close Drawer Option
• Solid wood dovetail drawer box
• Features undermount full extension soft close glide
• Dovetail upcharge is per drawer and includes rollout drawers if ordered
• 75 pound load rating
ORDER CODE
PRODUCT OVERVIEW
Dovetail Soft Close Drawer Glide |
|
STANDARD |
DOVETAIL |
Drawer depth |
22 " |
21 " |
Travel ( extension ) |
17 1 / 4 " |
20 1 / 4 " |
Clearance inside |
4 1 / 4 " |
3 3 / 4 " |
Load rating |
75 lb |
75 lb |
Soft close |
no |
yes |
DT
Solid Hardwood Side
Hardboard Panel
Soft Close Hinge Option
• Soft close hinges can be ordered globally for the entire order
• Some cabinets are not available with the soft close hinge option - refer to individual SKU box for exceptions
ORDER CODE
Soft Close Hinges
SC
2020 NOTE : 2020 will calculate the appropriate number of hinges per cabinet .
Clear Glass Option
• Glass Door Cabinets come standard with Clear Glass
• For replacement glass , order " A " glass for all door styles excluding Craftsman & Monterey
• For replacement glass , order " C " glass for Craftsman & Monterey door styles only
• Features matching laminate finished ends and matching laminate interior standard
• All components tops , bottoms , backs and shelves are made with 5 / 8 " laminate furniture board
• Glass is tempered
ORDER CODE
Replacement Clear " A " Glass Replacement Clear " C " Glass
ADGIA- ___ -CLR ADGIC- ___ -CLR
2020 Note : When selecting glass type 2020 will automatically calculate the number of doors .
