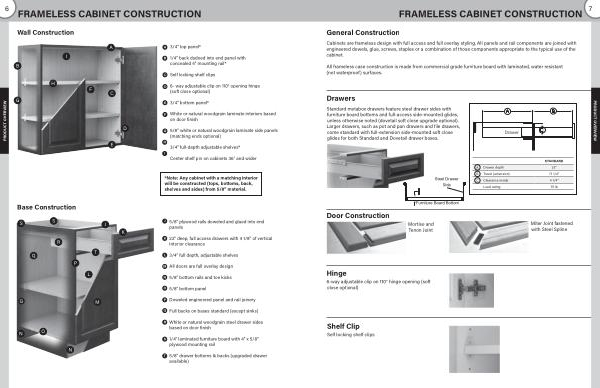

FRAMELESS CABINET CONSTRUCTION
7
General Construction
Cabinets are frameless design with full access and full overlay styling . All panels and rail components are joined with engineered dowels , glue , screws , staples or a combination of those components appropriate to the typical use of the cabinet .
All frameless case construction is made from commercial grade furniture board with laminated , water resistant ( not waterproof ) surfaces .
Drawers
Standard metabox drawers feature steel drawer sides with furniture board bottoms and full-access side-mounted glides , unless otherwise noted ( dovetail soft close upgrade optional ). Larger drawers , such as pot and pan drawers and file drawers , come standard with full-extension side-mounted soft close glides for both Standard and Dovetail drawer boxes .
PRODUCT OVERVIEW
Steel Drawer Side
A B C
STANDARD |
Drawer depth |
22 " |
Travel ( extension ) |
17 1 / 4 " |
Clearance inside |
4 1 / 4 " |
Load rating |
75 lb |
Furniture Board Bottom
Door Construction
Solid Hardwood Side
Mortise and Tenon Joint
Hardboard Panel
Miter Joint fastened with Steel Spline
Stainless Steel Sides
Hinge
Furniture Board Bottom
6-way adjustable clip on 110 ° hinge opening ( soft close optional )
Shelf Clip
Self locking shelf clips
