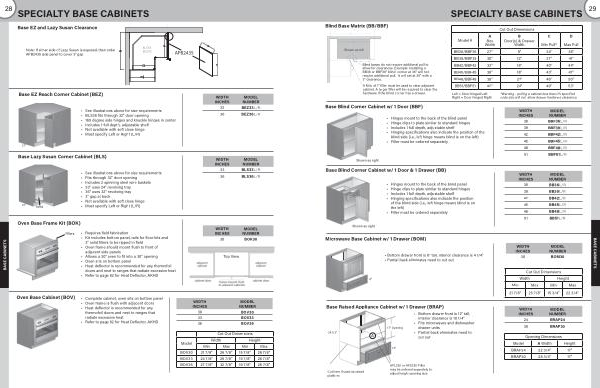

Base EZ Reach Corner Cabinet ( BEZ )
• See illustrations above for size requirements
• BLS36 fits through 32 " door opening
• 165 degree side hinges and knuckle hinges in center
• Includes 1 full depth , adjustable shelf
• Not available with soft close hinge
• Must specify Left or Right ( L / R )
|
WIDTH INCHES
33
36
|
MODEL NUMBER
BEZ33L / R
BEZ36L / R
|
||||
21 " |
||||||
|
Base Lazy Susan Corner Cabinet ( BLS )
21 "
Metal
• See illustrations above for size requirements
• Fits through 32 " door opening
• Includes 2 spinning steel wire baskets
• 33 " uses 24 " revolving tray
• 36 " uses 32 " revolving tray
• 3 " gap at back
• Not available with soft close hinge
• Must specify Left or Right ( L / R )
|
WIDTH INCHES
33
36
|
MODEL NUMBER
BLS33L / R
BLS36L / R
|
||||
BASE CABINETS |
Oven Base Frame Kit ( BOK )
Fillers
• Requires field fabrication
• Kit includes bottom panel , rails for floor kits and 3 " solid fillers to be ripped in field
• Oven frame should mount flush to front of adjacent side panels
• Allows a 30 " oven to fit into a 30 " opening
• Oven sits on bottom panel
• Heat deflector is recommended for any thermofoil doors and next to ranges that radiate excessive heat
• Refer to page 62 for Heat Deflector , AKHD
|
WIDTH INCHES
30
Top View
|
MODEL NUMBER
BOK30
|
Oven Base Cabinet ( BOV ) |
• Complete cabinet , oven sits on bottom panel
• Oven frame is flush with adjacent doors
• Heat deflector is recommended for any thermofoil doors and next to ranges that radiate excessive heat
• Refer to page 62 for Heat Deflector , AKHD
|
WIDTH INCHES
30 33 36
|
MODEL NUMBER
BOV30 BOV33 BOV36
|
Cut Out Dimensions | ||||
Model |
Width
Min
Max
|
Height
Min
Max
|
||
BOV30 |
21 7 / 8 " |
26 7 / 8 " |
15 7 / 8 " |
26 7 / 8 " |
BOV33 |
24 7 / 8 " |
29 7 / 8 " |
19 7 / 8 " |
26 7 / 8 " |
BOV36 |
27 7 / 8 " |
32 7 / 8 " |
19 7 / 8 " |
26 7 / 8 " |
