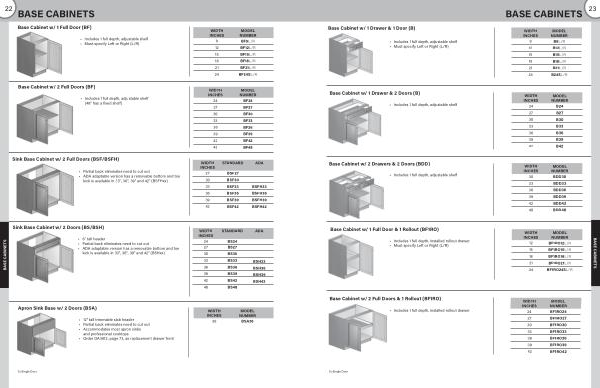

PCS Specification Guide 2024 2024 | Page 22

22

BASE CABINETS

Base Cabinet w / 1 Full Door ( BF )
• Includes 1 full depth , adjustable shelf
• Must specify Left or Right ( L / R )
WIDTH INCHES
9 12 15 18 21 24
MODEL NUMBER
BF9L / R BF12L / R BF15L / R BF18L / R BF21L / R BF24SL / R
Base Cabinet w / 2 Full Doors ( BF )
• Includes 1 full depth , adjustable shelf ( 48 " has a fixed shelf )
WIDTH INCHES
24 27 30 33 36 39 42 48
MODEL NUMBER
BF24 BF27 BF30 BF33 BF36 BF39 BF42 BF48
Sink Base Cabinet w / 2 Full Doors ( BSF / BSFH )
• Partial back eliminates need to cut out
• ADA adaptable version has a removable bottom and toe kick is available in 33 ", 36 ", 39 " and 42 " ( BSFHxx )
WIDTH INCHES
27
30
33
STANDARD
BSF27 BSF30 BSF33
ADA
BSFH33
36
BSF36
BSFH36
39
BSF39
BSFH39
42
BSF42
BSFH42
BASE CABINETS
Sink Base Cabinet w / 2 Doors ( BS / BSH )
• 6 " tall header
• Partial back eliminates need to cut out
• ADA adaptable version has a removable bottom and toe kick is available in 33 ", 36 ", 39 " and 42 " ( BSHxx )
WIDTH INCHES
24 27
30
33
36
39
42
48
STANDARD
BS24 BS27
BS30
BS33
BS36
BS39
BS42
BS48
ADA
BSH33 BSH36 BSH39 BSH42
Apron Sink Base w / 2 Doors ( BSA )
• 12 " tall trimmable slab header
• Partial back eliminates need to cut out
• Accommodates most apron sinks and professional cooktops
• Order OA3612 , page 73 , as replacement drawer front
WIDTH INCHES
36
MODEL NUMBER
BSA36
S = Single Door
