PCS Specification Guide 2024 2024 | Page 13

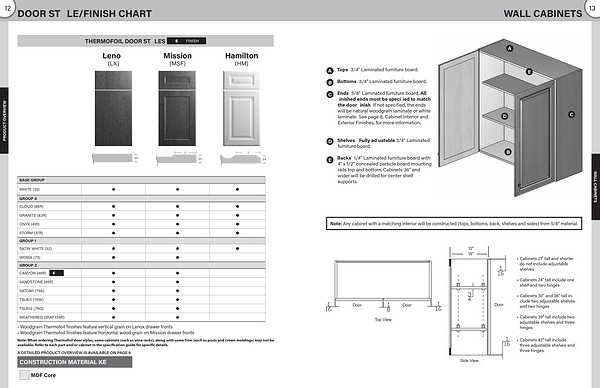

WALL CABINETS

13
A
A B
Tops : 3 / 4 " Laminated furniture board . Bottoms : 3 / 4 " Laminated furniture board .
E
C
Ends : 5 / 8 " Laminated furniture board . All finished ends must be specified to match the door finish . If not specified , the ends will be natural woodgrain laminate or white laminate . See page 8 , Cabinet Interior and Exterior Finishes , for more information .
D
C
D
E
Shelves : Fully adjustable 3 / 4 " Laminated furniture board .
Backs : 1 / 4 " Laminated furniture board with 4 " x 1 / 2 " concealed particle board mounting rails top and bottom . Cabinets 36 " and wider will be drilled for center shelf supports .
B
WALL CABINETS
Note : Any cabinet with a matching interior will be constructed ( tops , bottoms , back , shelves and sides ) from 5 / 8 " material .
12 " 15 "
• Cabinets 21 " tall and shorter do not include adjustable shelves
• Cabinets 24 " tall include one shelf and two hinges
Door
Door
Door
• Cabinets 30 " and 36 " tall include two adjustable shelves and two hinges
Top View
• Cabinets 39 " tall include two adjustable shelves and three hinges
• Cabinets 42 " tall include three adjustable shelves and three hinges
Side View Fully Adjustable Shelves
