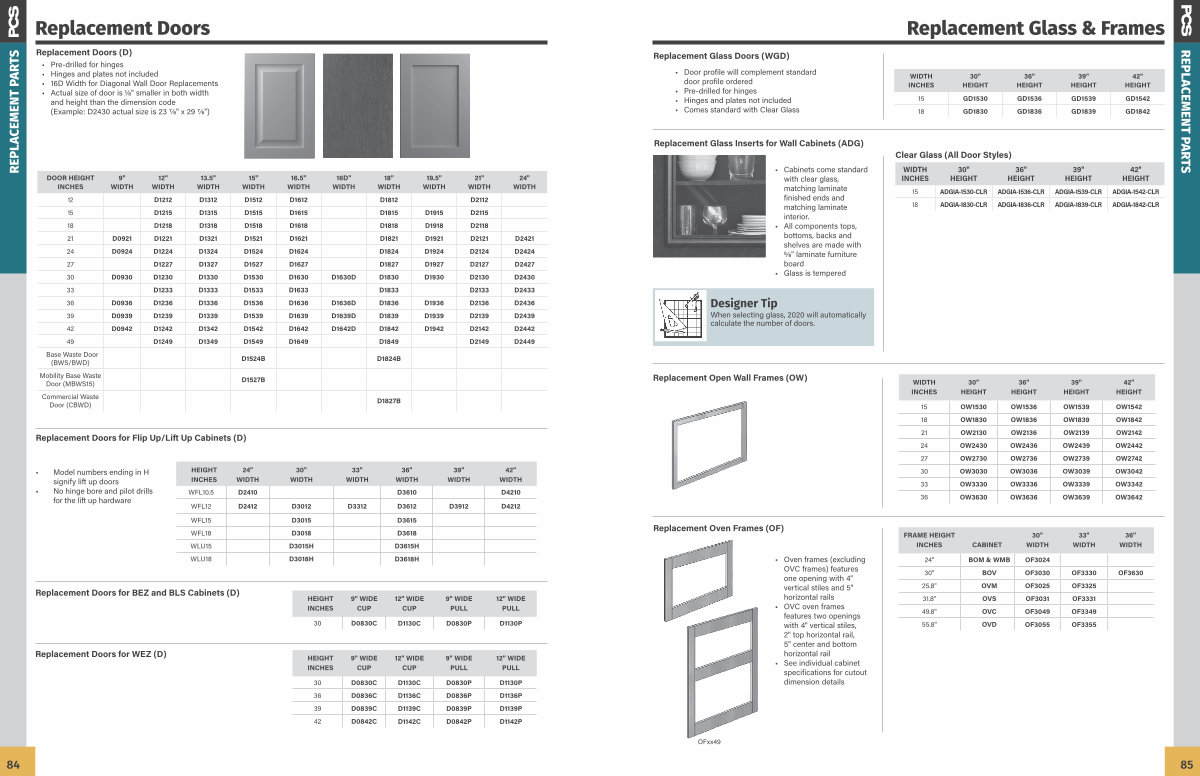

Replacement Glass & Frames
Replacement Glass Doors( WGD)
• Door profile will complement standard door profile ordered
• Pre-drilled for hinges
• Hinges and plates not included
• Comes standard with Clear Glass
Replacement Glass Inserts for Wall Cabinets( ADG)
• Cabinets come standard with clear glass, matching laminate finished ends and matching laminate interior.
• All components tops, bottoms, backs and shelves are made with 5 / 8 " laminate furniture board
• Glass is tempered
WIDTH INCHES
Clear Glass( All Door Styles)
WIDTH INCHES
30 " HEIGHT
30 " HEIGHT
36 " HEIGHT
36 " HEIGHT
39 " HEIGHT
39 " HEIGHT
42 " HEIGHT
15 GD1530 GD1536 GD1539 GD1542 18 GD1830 GD1836 GD1839 GD1842
42 " HEIGHT
15 ADGIA-1530-CLR ADGIA-1536-CLR ADGIA-1539-CLR ADGIA-1542-CLR 18 ADGIA-1830-CLR ADGIA-1836-CLR ADGIA-1839-CLR ADGIA-1842-CLR
REPLACEMENT PARTS
Designer Tip
When selecting glass, 2020 will automatically calculate the number of doors.
Replacement Open Wall Frames( OW)
WIDTH |
30 " |
36 " |
39 " |
42 " |
INCHES |
HEIGHT |
HEIGHT |
HEIGHT |
HEIGHT |
15 OW1530 OW1536 OW1539 OW1542 18 OW1830 OW1836 OW1839 OW1842 21 OW2130 OW2136 OW2139 OW2142 24 OW2430 OW2436 OW2439 OW2442 27 OW2730 OW2736 OW2739 OW2742 30 OW3030 OW3036 OW3039 OW3042 33 OW3330 OW3336 OW3339 OW3342 36 OW3630 OW3636 OW3639 OW3642
Replacement Oven Frames( OF)
• Oven frames( excluding OVC frames) features one opening with 4 " vertical stiles and 5 " horizontal rails
• OVC oven frames features two openings with 4 " vertical stiles, 2 " top horizontal rail, 5 " center and bottom horizontal rail
• See individual cabinet specifications for cutout dimension details
FRAME HEIGHT |
|
30 " |
33 " |
36 " |
INCHES |
CABINET |
WIDTH |
WIDTH |
WIDTH |
24 " BOM & WMB OF3024 30 " BOV OF3030 OF3330 OF3630 25.8 " OVM OF3025 OF3325 31.8 " OVS OF3031 OF3331 49.8 " OVC OF3049 OF3349 55.8 " OVD OF3055 OF3355
OFxx49
