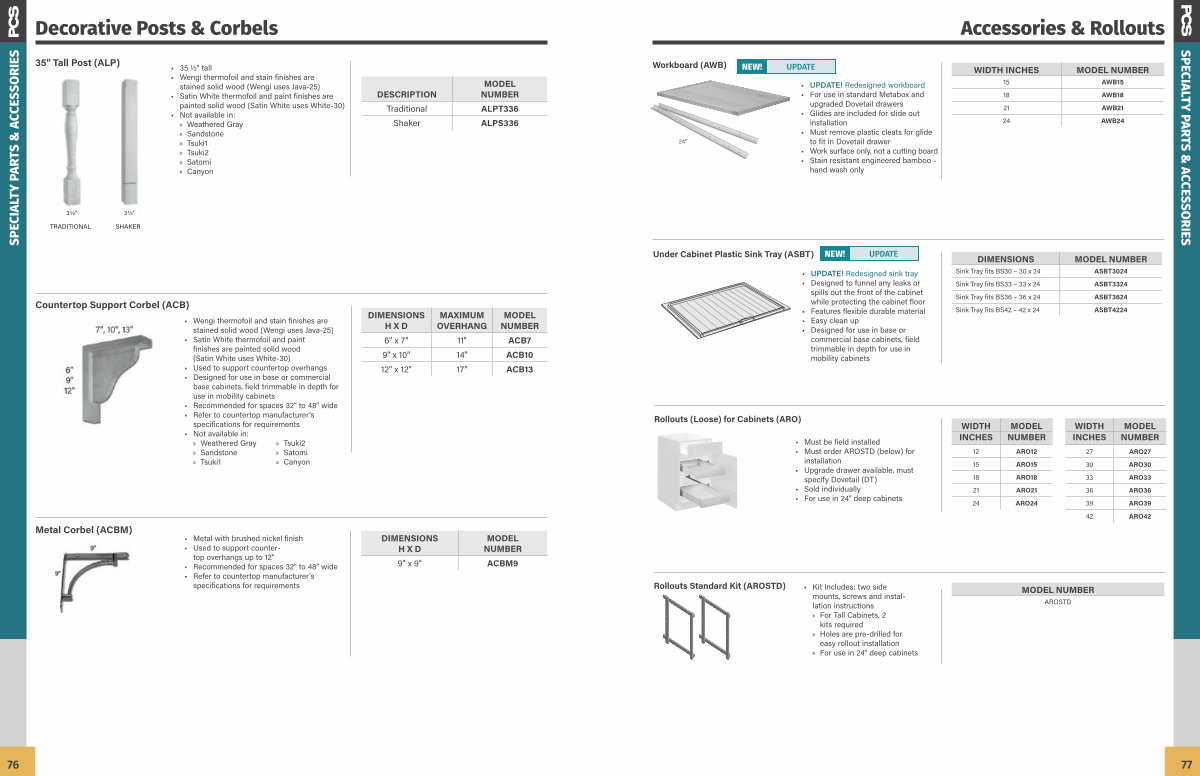

Decorative Posts & Corbels
SPECIALTY PARTS & ACCESSORIES |
35 " Tall Post( ALP) |
|
|
3 1 / 2 " |
3 1 / 2 " |
TRADITIONAL |
SHAKER |
|
• 35 1 / 2 " tall
• Wengi thermofoil and stain finishes are stained solid wood( Wengi uses Java-25)
• Satin White thermofoil and paint finishes are painted solid wood( Satin White uses White-30)
• Not available in: » Weathered Gray » Sandstone » Tsuki1 » Tsuki2 » Satomi » Canyon
|
DESCRIPTION
Traditional
Shaker
|
MODEL NUMBER
ALPT336
ALPS336
|
Countertop Support Corbel( ACB)
• Wengi thermofoil and stain finishes are stained solid wood( Wengi uses Java-25)
• Satin White thermofoil and paint finishes are painted solid wood( Satin White uses White-30)
• Used to support countertop overhangs
• Designed for use in base or commercial base cabinets, field trimmable in depth for use in mobility cabinets
• Recommended for spaces 32 " to 48 " wide
• Refer to countertop manufacturer ' s specifications for requirements
• Not available in: » Weathered Gray » Sandstone » Tsuki1
» Tsuki2 » Satomi » Canyon
DIMENSIONS H X D
MAXIMUM OVERHANG
MODEL NUMBER
6 " x 7 " 11 " ACB7 9 " x 10 " 14 " ACB10 12 " x 12 " 17 " ACB13
Metal Corbel( ACBM)
• Metal with brushed nickel finish
• Used to support countertop overhangs up to 12 "
• Recommended for spaces 32 " to 48 " wide
• Refer to countertop manufacturer ' s specifications for requirements
DIMENSIONS H X D
MODEL NUMBER
9 " x 9 " ACBM9
76
