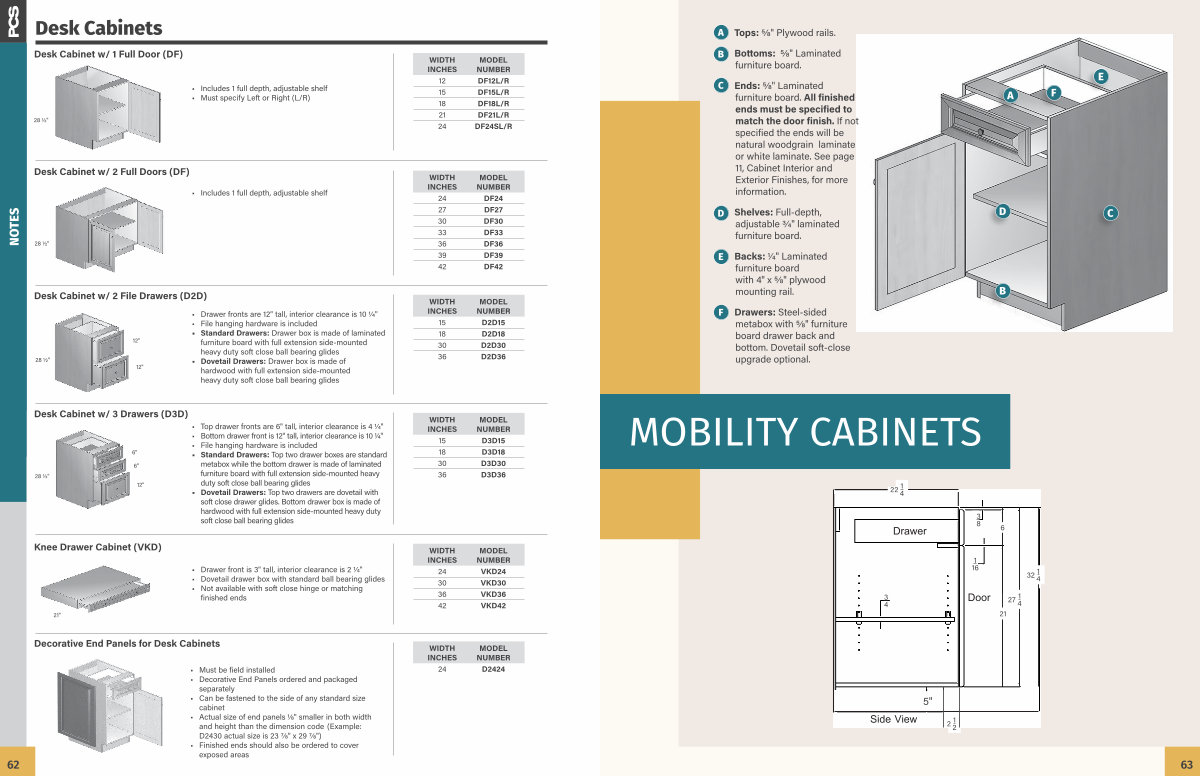

Desk Cabinets |
|||||||
DESK CABINETS |
Desk Cabinet w / 1 Full Door( DF)
28 1 / 2 "
|
• Includes 1 full depth, adjustable shelf
• Must specify Left or Right( L / R)
|
WIDTH INCHES
12 15 18 21 24
|
MODEL NUMBER
DF12L / R DF15L / R DF18L / R DF21L / R DF24SL / R
|
NOTES NOTES |
Desk Cabinet w / 2 Full Doors( DF)
28 1 / 2 "
|
• Includes 1 full depth, adjustable shelf |
WIDTH INCHES
24 27 30 33 36 39 42
|
MODEL NUMBER
DF24 DF27 DF30 DF33 DF36 DF39 DF42
|
|
Desk Cabinet w / 2 File Drawers( D2D) |
28 1 / 2 "
12 "
12 "
• Drawer fronts are 12 " tall, interior clearance is 10 1 / 4 "
• File hanging hardware is included
• Standard Drawers: Drawer box is made of laminated furniture board with full extension side-mounted heavy duty soft close ball bearing glides
• Dovetail Drawers: Drawer box is made of hardwood with full extension side-mounted heavy duty soft close ball bearing glides
|
WIDTH INCHES
15 18 30 36
|
MODEL NUMBER
D2D15 D2D18 D2D30 D2D36
|
||
|
Desk Cabinet w / 3 Drawers( D3D)
28 1 / 2 "
|
6 "
6 "
12 "
• Top drawer fronts are 6 " tall, interior clearance is 4 1 / 4 "
• Bottom drawer front is 12 " tall, interior clearance is 10 1 / 4 "
• File hanging hardware is included
• Standard Drawers: Top two drawer boxes are standard metabox while the bottom drawer is made of laminated furniture board with full extension side-mounted heavy duty soft close ball bearing glides
• Dovetail Drawers: Top two drawers are dovetail with soft close drawer glides. Bottom drawer box is made of hardwood with full extension side-mounted heavy duty soft close ball bearing glides
|
WIDTH INCHES
15 18 30 36
|
MODEL NUMBER
D3D15 D3D18 D3D30 D3D36
|
Knee Drawer Cabinet( VKD) |
21 " |
• Drawer front is 3 " tall, interior clearance is 2 1 / 4 "
• Dovetail drawer box with standard ball bearing glides
• Not available with soft close hinge or matching finished ends
|
WIDTH INCHES
24 30 36 42
|
MODEL NUMBER
VKD24 VKD30 VKD36 VKD42
|
62 |
Decorative End Panels for Desk Cabinets
• Must be field installed
• Decorative End Panels ordered and packaged separately
• Can be fastened to the side of any standard size cabinet
• Actual size of end panels 1 / 8 " smaller in both width and height than the dimension code( Example: D2430 actual size is 23 7 / 8 " x 29 7 / 8 ")
• Finished ends should also be ordered to cover exposed areas
|
WIDTH INCHES
24
|
MODEL NUMBER
D2424
|
