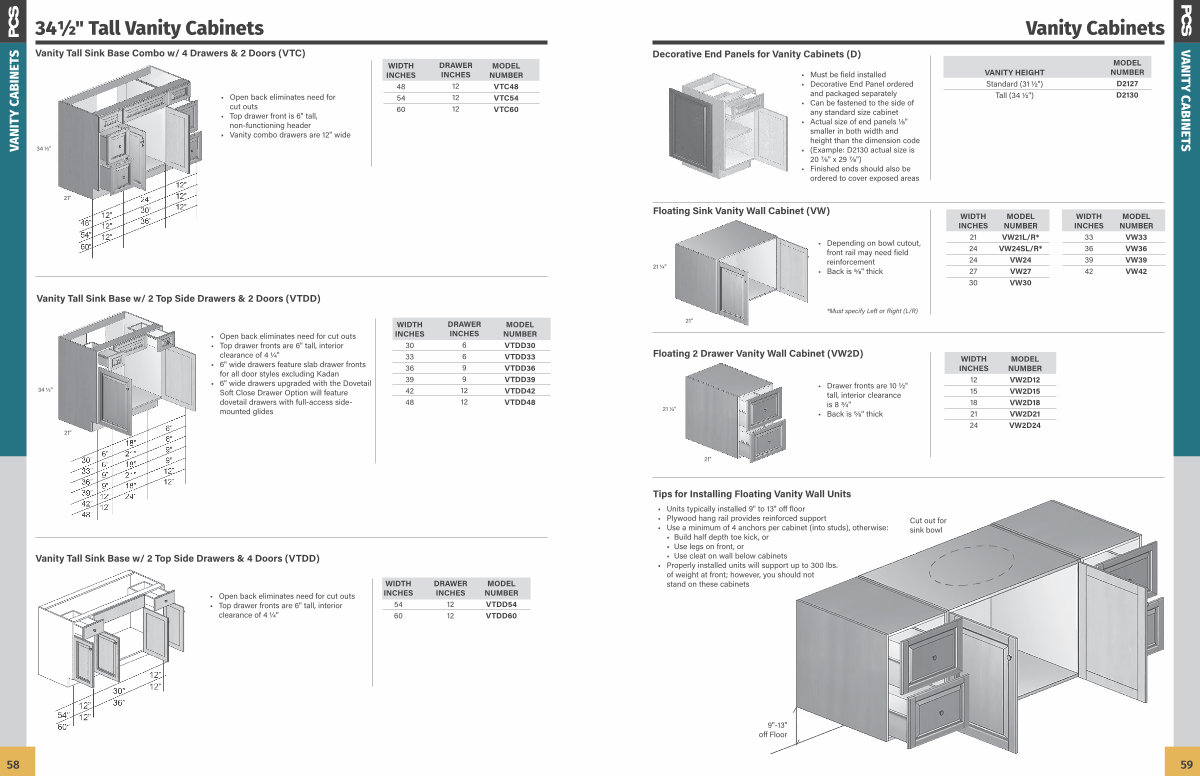

Decorative End Panels for Vanity Cabinets( D)

• Must be field installed

• Decorative End Panel ordered and packaged separately

• Can be fastened to the side of any standard size cabinet

• Actual size of end panels 1 / 8 " smaller in both width and height than the dimension code

•( Example: D2130 actual size is 20 7 / 8 " x 29 7 / 8 ")

• Finished ends should also be ordered to cover exposed areas

VANITY HEIGHT Standard( 31 1 / 2 ") Tall( 34 1 / 2 ")

MODEL NUMBER

D2127 D2130

VANITY CABINETS

Floating Sink Vanity Wall Cabinet( VW)

21 1 / 4 "

• Depending on bowl cutout, front rail may need field reinforcement

• Back is 5 / 8 " thick

WIDTH INCHES

21 24 24 27 30

MODEL NUMBER

VW21L / R * VW24SL / R * VW24 VW27 VW30

WIDTH INCHES

33 36 39 42

MODEL NUMBER

VW33 VW36 VW39 VW42

21 "

* Must specify Left or Right( L / R)

Floating 2 Drawer Vanity Wall Cabinet( VW2D)

21 1 / 4 "

• Drawer fronts are 10 1 / 2 " tall, interior clearance is 8 3 / 4 "

• Back is 5 / 8 " thick

WIDTH INCHES

12 15 18 21 24

MODEL NUMBER

VW2D12 VW2D15 VW2D18 VW2D21 VW2D24

21 "

Tips for Installing Floating Vanity Wall Units

• Units typically installed 9 " to 13 " off floor

• Plywood hang rail provides reinforced support

• Use a minimum of 4 anchors per cabinet( into studs), otherwise:

• Build half depth toe kick, or

• Use legs on front, or

• Use cleat on wall below cabinets

• Properly installed units will support up to 300 lbs. of weight at front; however, you should not stand on these cabinets

Cut out for sink bowl

9 "-13 " off Floor
