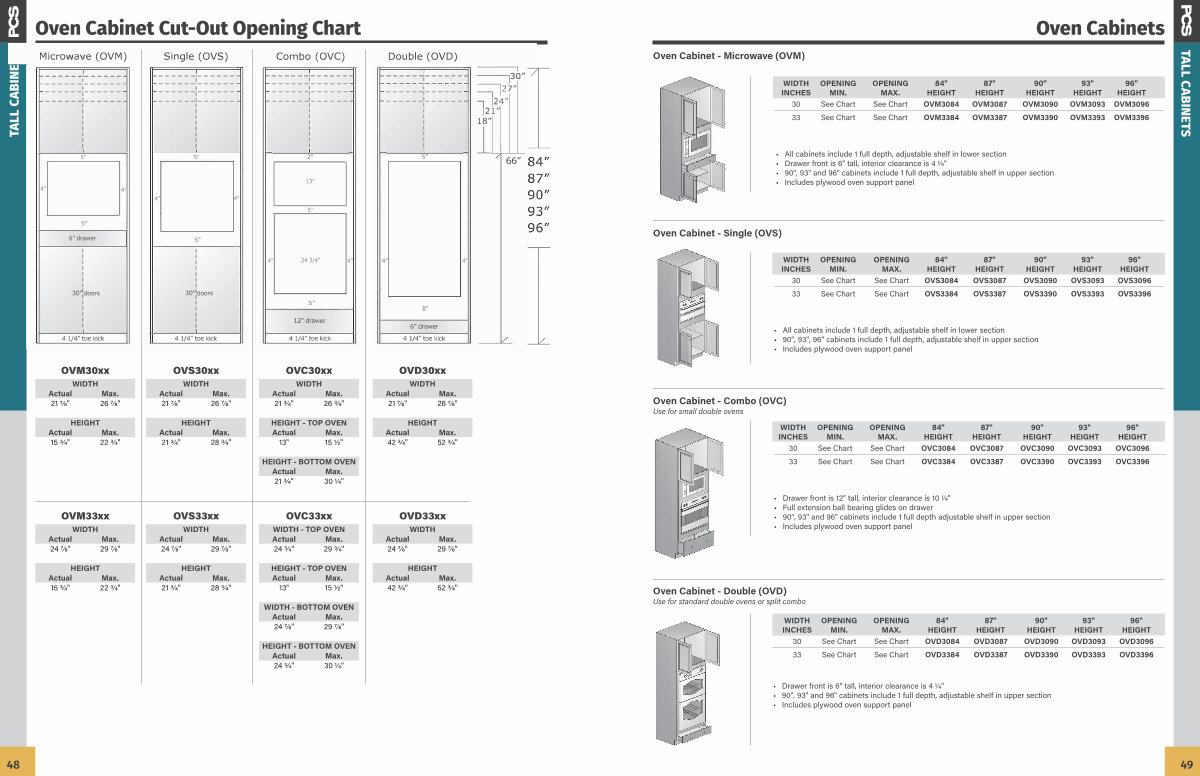

PCS Spec Guide_2025 | Page 49

Oven Cabinets

Oven Cabinet- Microwave( OVM)
WIDTH INCHES
30
33
OPENING MIN.
See Chart
See Chart
OPENING MAX.
See Chart
See Chart
84 " HEIGHT
OVM3084
OVM3384
87 " HEIGHT
OVM3087
OVM3387
90 " HEIGHT
OVM3090
OVM3390
93 " HEIGHT
OVM3093
OVM3393
96 " HEIGHT
OVM3096
OVM3396
TALL CABINETS
• All cabinets include 1 full depth, adjustable shelf in lower section
• Drawer front is 6 " tall, interior clearance is 4 1 / 4 "
• 90 ", 93 " and 96 " cabinets include 1 full depth, adjustable shelf in upper section
• Includes plywood oven support panel
Oven Cabinet- Single( OVS)
WIDTH INCHES
30
OPENING MIN.
See Chart
OPENING MAX.
See Chart
84 " HEIGHT
OVS3084
87 " HEIGHT
OVS3087
90 " HEIGHT
OVS3090
93 " HEIGHT
OVS3093
96 " HEIGHT
OVS3096
33
See Chart
See Chart
OVS3384
OVS3387
OVS3390
OVS3393
OVS3396
• All cabinets include 1 full depth, adjustable shelf in lower section
• 90 ", 93 ", 96 " cabinets include 1 full depth, adjustable shelf in upper section
• Includes plywood oven support panel
Oven Cabinet- Combo( OVC)
Use for small double ovens
WIDTH INCHES
30
OPENING MIN.
See Chart
OPENING MAX.
See Chart
84 " HEIGHT
OVC3084
87 " HEIGHT
OVC3087
90 " HEIGHT
OVC3090
93 " HEIGHT
OVC3093
96 " HEIGHT
OVC3096
33
See Chart
See Chart
OVC3384
OVC3387
OVC3390
OVC3393
OVC3396
• Drawer front is 12 " tall, interior clearance is 10 1 / 4 "
• Full extension ball bearing glides on drawer
• 90 ", 93 " and 96 " cabinets include 1 full depth adjustable shelf in upper section
• Includes plywood oven support panel
Oven Cabinet- Double( OVD)
Use for standard double ovens or split combo
WIDTH INCHES
30
OPENING MIN.
See Chart
OPENING MAX.
See Chart
84 " HEIGHT
OVD3084
87 " HEIGHT
OVD3087
90 " HEIGHT
OVD3090
93 " HEIGHT
OVD3093
96 " HEIGHT
OVD3096
33
See Chart
See Chart
OVD3384
OVD3387
OVD3390
OVD3393
OVD3396
• Drawer front is 6 " tall, interior clearance is 4 1 / 4 "
• 90 ", 93 " and 96 " cabinets include 1 full depth, adjustable shelf in upper section
• Includes plywood oven support panel
49
