PCS Spec Guide_2025 | Page 31

A
B
C
Tops: 5 / 8 " Plywood rails.
Bottoms: 5 / 8 " Laminated furniture board.
Ends: 5 / 8 " Laminated furniture board. All finished ends must be specified to match the door finish. If not specified the ends will be natural woodgrain laminate or white laminate. See page 11, Cabinet Interior and Exterior Finishes, for more information.
D
A
F
E
C

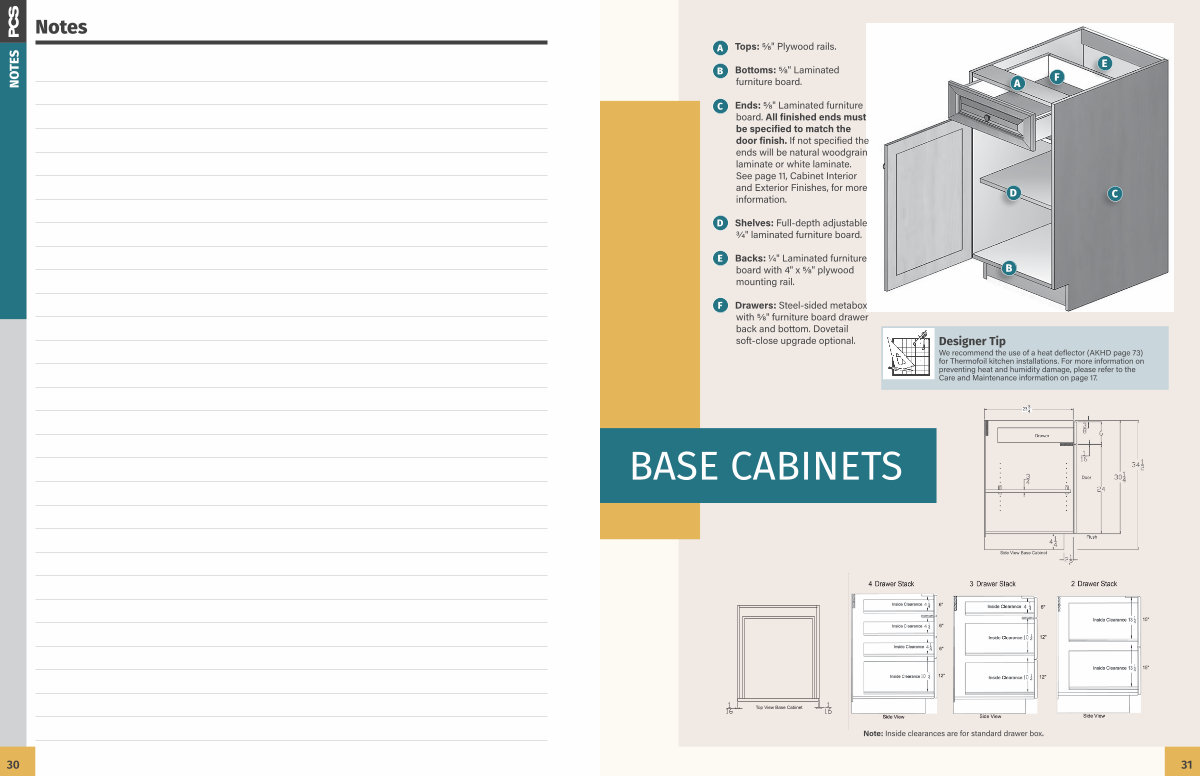

BASE CABINETS
D
Shelves: Full-depth adjustable 3 / 4 " laminated furniture board.
E
Backs: 1 / 4 " Laminated furniture board with 4 " x 5 / 8 " plywood mounting rail.
B
F
Drawers: Steel-sided metabox with 5 / 8 " furniture board drawer back and bottom. Dovetail soft-close upgrade optional.
Designer Tip
We recommend the use of a heat deflector( AKHD page 73) for Thermofoil kitchen installations. For more information on preventing heat and humidity damage, please refer to the Care and Maintenance information on page 17.

BASE CABINETS

Top View Base Cabinet
Note: Inside clearances are for standard drawer box.
31
