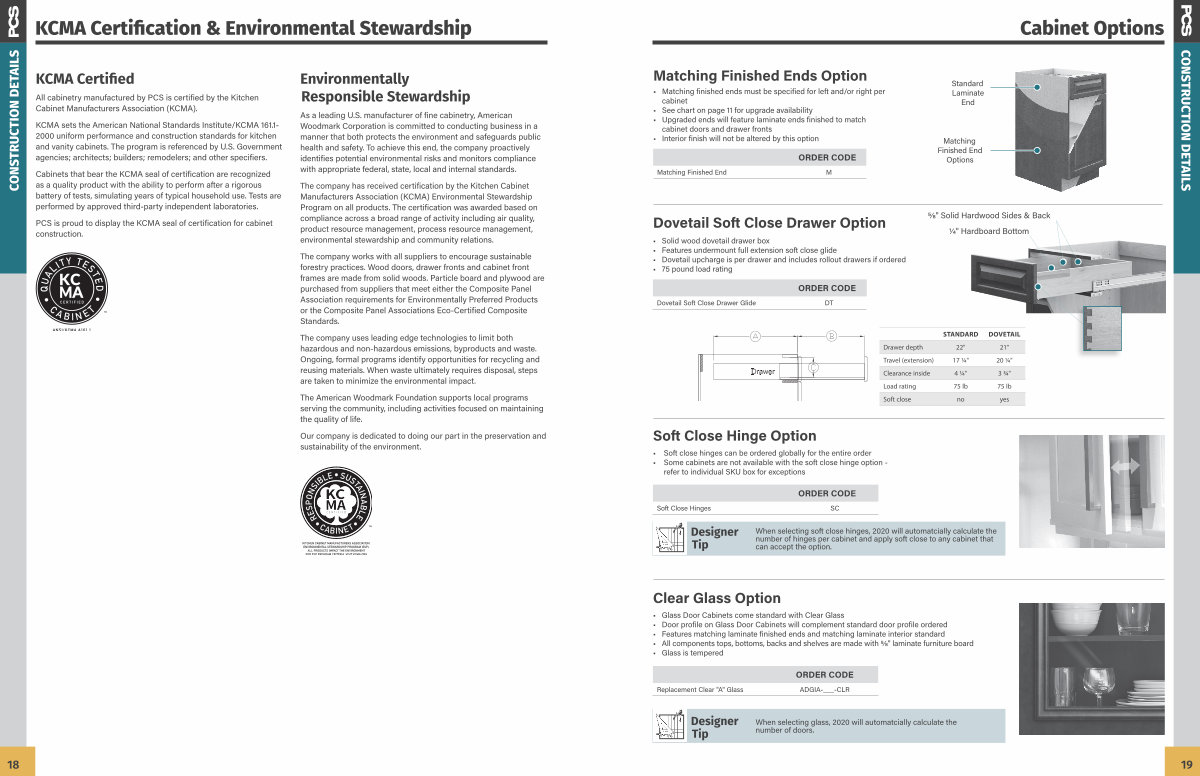

Cabinet Options
Matching Finished Ends Option
• Matching finished ends must be specified for left and / or right per cabinet
• See chart on page 11 for upgrade availability
• Upgraded ends will feature laminate ends finished to match cabinet doors and drawer fronts
• Interior finish will not be altered by this option
Matching Finished End
ORDER CODE M
Standard Laminate End
Matching Finished End Options
CONSTRUCTION DETAILS
Dovetail Soft Close Drawer Option
• Solid wood dovetail drawer box
• Features undermount full extension soft close glide
• Dovetail upcharge is per drawer and includes rollout drawers if ordered
• 75 pound load rating
ORDER CODE
5 / 8 " Solid Hardwood Sides & Back 1 / 4 " Hardboard Bottom
Dovetail Soft Close Drawer Glide DT
|
STANDARD |
DOVETAIL |
Drawer depth |
22 " |
21 " |
Travel( extension) |
17 1/4 " |
20 1/4 " |
Clearance inside |
4 1/4 " |
3 3/4 " |
Load rating |
75 lb |
75 lb |
Soft close |
no |
yes |
Soft Close Hinge Option
• Soft close hinges can be ordered globally for the entire order
• Some cabinets are not available with the soft close hinge option- refer to individual SKU box for exceptions
ORDER CODE
Soft Close Hinges
Designer Tip
SC
When selecting soft close hinges, 2020 will automatcially calculate the number of hinges per cabinet and apply soft close to any cabinet that can accept the option.
Clear Glass Option
• Glass Door Cabinets come standard with Clear Glass
• Door profile on Glass Door Cabinets will complement standard door profile ordered
• Features matching laminate finished ends and matching laminate interior standard
• All components tops, bottoms, backs and shelves are made with 5 / 8 " laminate furniture board
• Glass is tempered
ORDER CODE
Replacement Clear " A " Glass ADGIA- ___-CLR
Designer Tip
When selecting glass, 2020 will automatcially calculate the number of doors.
19
