Milling Tools | Ferramentas de Fresagem | Herramientas de Fresado

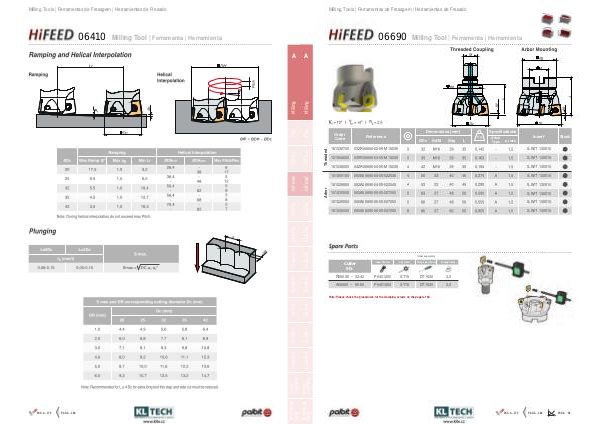

06690
Milling Tool | Ferramenta | Herramienta
Specifications
Dimensions (mm)
Order
Code Reference 181038700 032R06690-03-05-M16035 S..W/T 130510
181064600 035R06690-03-05-M16035 S..W/T 130510
181038800 042R06690-04-05-M16035 S..W/T 130510
181069100 050A06690-04-05-022045 S..W/T 130510
181029800 052A06690-04-05-022045 S..W/T 130510
181033500 063A06690-05-05-027050 S..W/T 130510
181029900 066A06690-05-05-027050 S..W/T 130510
181030000 080A06690-06-05-027050 S..W/T 130510
ØDc
Ød/M
Ødg
L
Kg
Arbor
Type
Insert
Stock
a p (mm)
A
Order separately
Cutter
ØDc Insert Screw Key (Torx) Torque Key (Torx) Torque Value
R06690 – 32-42 P0401200 XT15 DT1530 3,0
A06690 – 50-80 P0401200 XT15 DT1530 3,0
Note: Please check the procedures for the clamping screws on the page A-183.
A - 92
