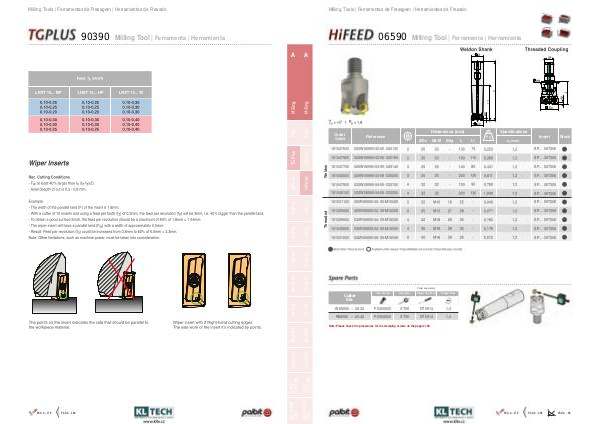

Milling Tools | Ferramentas de Fresagem | Herramientas de Fresado
06590
Milling Tool | Ferramenta | Herramienta
Specifications
Dimensions (mm)
Order
Code Reference 181047600 020W06590-02-05-020130 SP… 08T308
181047900 020W06590-02-05-020190 SP… 08T308
181047700 025W06590-03-05-025140 SP… 08T308
181048000 025W06590-03-05-025200 SP… 08T308
181047800 032W06590-04-05-032150 SP… 08T308
181048100 032W06590-04-05-032200 SP… 08T308
181031100 020R06590-02-05-M10025 SP… 08T308
181029400 025R06590-03-05-M12028 SP… 08T308
181029600 032R06590-04-05-M16035 SP… 08T308
181045800 035R06590-04-05-M16035 SP… 08T308
181031000 042R06590-05-05-M16035 SP… 08T308
ØDc
Ød/M
Ødg
L
L1
Kg
Insert
Stock
a p (mm)
Order separately
Cutter
ØDc Insert Screw Key (Torx) Torque Key (Torx) Torque Value
W06590 – 20-32 P0300800 XT09 DT0914 1,4
R06590 – 20-42 P0300800 XT09 DT0914 1,4
Note: Please check the procedures for the clamping screws on the page A-183.
