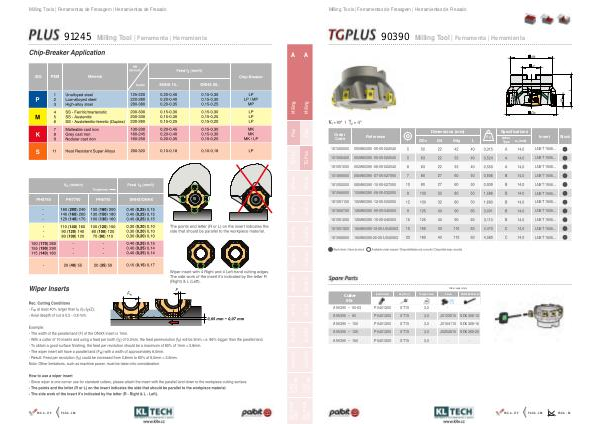

Milling Tools | Ferramentas de Fresagem | Herramientas de Fresado 90390 Milling Tool | Ferramenta | Herramienta Specifications Dimensions (mm) Order Code Reference 181069200 050A90390-05-05-022040 LNXT 1506... 181066400 063A90390-05-05-022040 LNXT 1506... 181051000 063A90390-08-05-022040 LNXT 1506... 181066500 080A90390-07-05-027050 LNXT 1506... 181052000 080A90390-10-05-027050 LNXT 1506... 181066600 100A90390-08-05-032050 LNXT 1506... 181051100 100A90390-12-05-032050 LNXT 1506... 181066700 125A90390-09-05-040063 LNXT 1506... 181051200 125A90390-15-05-040063 LNXT 1506... 181051300 160A90390-10-05-U040063 LNXT 1506... 181066800 160A90390-20-05-U040063 LNXT 1506... ØDc Ød Ødg L Kg Arbor Type Insert Stock a p (mm) A Order separately Key (Torx) Torque Value Screw DIN 6368 Wrench A90390 – 50-63 P0401200 XT15 3,0 - - A90390 – 80 P0401200 XT15 3,0 J0123510 SD6368-12 A90390 – 100 P0401200 XT15 3,0 J0164110 SD6368-16 A90390 – 125 P0401200 XT15 3,0 J0204610 SD6368-20 A90390 – 160 P0401200 XT15 3,0 - - Cutter ØDc Insert Screw A - 80 PAG A - 179 PAG A - 204 PAG A - 82
